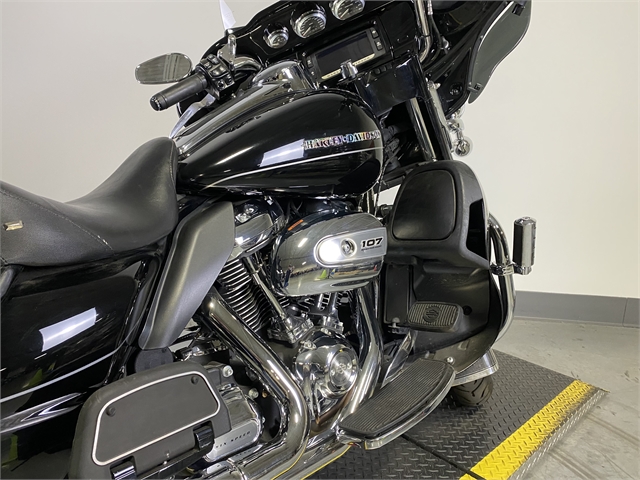

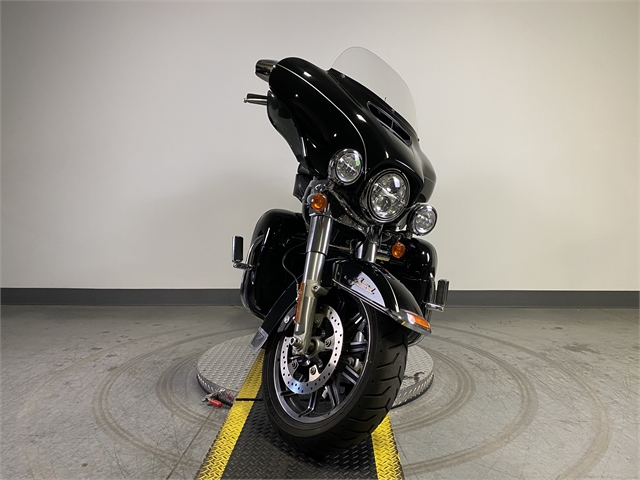

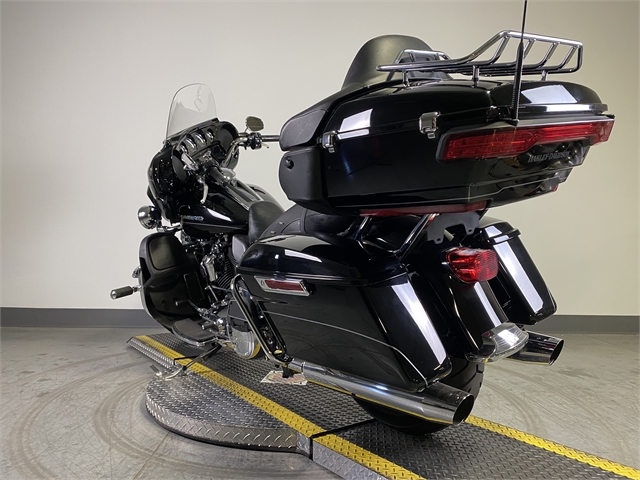

2017 Harley-Davidson Touring Ultra Limited

Stock #46739TW
Your Price: $22,981 USD

303 people have recently viewed it.
Check Availability

Hi, my name is and I'm interested in this 2017 Harley-Davidson Electra Glide Touring Ultra Limited . I'm in the area and you can reach me at or by phone at
Harley-Davidson's profilation of this bike
Welcome to top-of-the-line touring comfort, dressed out to the nines from the Daymaker™ LED headlamp to the Tour-Pak® luggage carrier.



General information
Model: Harley-Davidson Ultra Limited
Year: 2017
Category: Touring
Rating:  3.1  See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike.
Engine and transmission
Displacement: 1745.0 ccm (106.48 cubic inches)
Engine type: V2, four-stroke

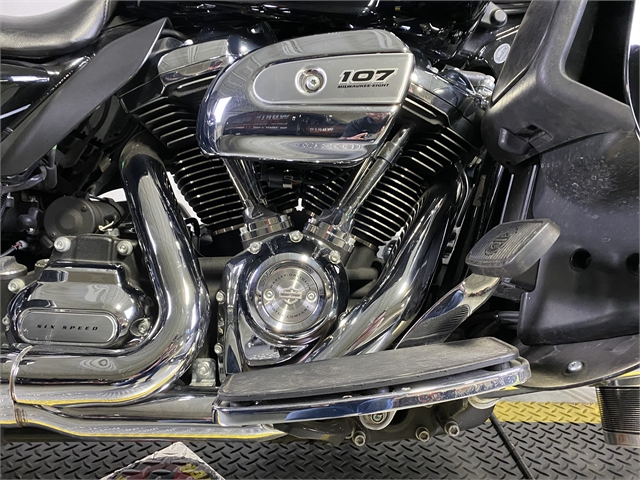

Engine details: Twin-Cooled™ Milwaukee-Eight™ 107
Power: 91.0 HP (66.4 kW)) @ 5450 RPM
Torque: 152.0 Nm (15.5 kgf-m or 112.1 ft.lbs) @ 3750 RPM
Compression: 10.0:1
Bore x stroke: 100.0 x 111.3 mm (3.9 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Fuel control: Double Overhead Cams/Twin Cam (DOHC)
Lubrication system: Dry sump
Cooling system: Oil & air
Gearbox: 6-speed
Transmission type,
final drive:
Belt
Clutch: Multi-plate with diaphragm spring in oil bath
Driveline: Chain, 34/46 ratio primary drive
Fuel consumption: 5.50 litres/100 km (18.2 km/l or 42.77 mpg)
Greenhouse gases: 127.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system: Chrome, 2-1-2 dual exhaust with tapered mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle): 26.0°
Trail: 170 mm (6.7 inches)
Front suspension: Telescopic fork
Rear suspension: Twin shocks
Front tyre: 130/80-B17
Rear tyre: 180/65-B16
Front brakes: Double disc. ABS. 4-piston
Rear brakes: Single disc. ABS. 4-piston
Wheels: Impeller Cast Aluminum
Physical measures and capacities
Dry weight: 398.0 kg (877.4 pounds)
Weight incl. oil, gas, etc: 413.0 kg (910.5 pounds)
Power/weight ratio: 0.2286 HP/kg
Seat height: 740 mm (29.1 inches) If adjustable, lowest setting.
Overall length: 2600 mm (102.4 inches)
Ground clearance: 135 mm (5.3 inches)
Wheelbase: 1625 mm (64.0 inches)
Fuel capacity: 22.71 litres (6.00 gallons)
Oil capacity: 3.80 litres (4.02 US quarts)
Other specifications
Color options: Vivid Black, Black Quartz,Billet Silver/Vivid Black, Mysterious Red Sunglo/Velocity Red Sunglo, Superior Blue/Billet Silver, Black Hills Gold/Black Quartz, Charcoal Denim/Black Denim, Bonneville Blue/Phatom Blue, Peace Officer Vivid Black, Peace Officer D
Starter: Electric
Instruments: Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators
Light: High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS
Carrying capacity: Saddle bags, top box
Comments: Windshield. Infotainment.
  • Status:
    Pre-Owned
  • Vehicle:
    2017 Harley-Davidson Touring Ultra Limited
  • VIN:
    1HD1KED1XHB646739
  • Model Number:
    FLHTK
  • Mileage:
    26,136 miles
  • Fuel Type:
    Gasoline
  • Transmission:
    Manual
  • Color:
    BLACK W/PINSTRIPE
  • Fuel Economy:
    43 mpg
  • Stock Number:
    46739TW
  • Title:
    Clear
  • Location:
    Worth Harley-Davidson
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Boom!™ Box 6.5GT
  • Number Of Speakers:
    4

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Adjustable:
    Yes
  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • Heated Hand Grip Location:
    Driver

ENGINE

  • Bore (in):
    3.94
  • Bore (mm):
    100.1
  • CAN Liters Per Kilometer (Combined):
    5.5
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    1753.4
  • Displacement (ci):
    107
  • Engine Brand Name:
    Twin-Cooled™ Milwaukee-Eight™ 107
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.3
  • Torque (Ft Lbs):
    113.6
  • Torque (Nm):
    143
  • Torque RPM:
    3250
  • US Miles Per Gallon (Combined):
    43
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver and Passenger
  • Frame:
    Steel
  • Saddle Bag Guard:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick
  • Tank Divider Material:
    Leather

GLASS

  • Folding:
    Yes
  • Height:
    High
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Backrest Location:
    Passenger
  • Backrest Type:
    Fixed
  • Lumbar Adjustment:
    Yes
  • Number Of Seats:
    2
  • Seat Height (in):
    29.1
  • Seat Height (mm):
    739.1
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Bag Liner Material:
    Vinyl
  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Rear Rack Storage Material:
    Hard Vinyl
  • Rear Rack Storage Trim:
    Plain
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Steering Damper:
    Yes

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    395.1
  • Dry Weight (lbs):
    871
  • Engine Displacement to Weight (cc):
    2.01
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    5.4
  • Ground Clearance (mm):
    137.2
  • Length (ft):
    8.52
  • Length (ft/ft):
    8
  • Length (ft/in):
    6.3
  • Length (in):
    102.3
  • Length (mm):
    2598.4
  • Storage Capacity (cuft):
    4.7
  • Storage Capacity (gal):
    30.2
  • Storage Capacity (l):
    133.1
  • Wet Weight (kg):
    411.9
  • Wet Weight (lbs):
    908
  • Wheelbase (in):
    64
  • Wheelbase (mm):
    1625.6

TRANSMISSION

  • Gear Ratio (1):
    9.593
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.938
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.407
  • Gear Ratio (6):
    2.875
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Chromed:
    Yes
  • Front Tire (Full Spec):
    Dunlop® Multi-Tread™ 130/80 R17 65H
  • Front Tire Aspect Ratio:
    80
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    17
  • Rear Tire (Full Spec):
    Dunlop® Multi-Tread™ 180/65 R16 81H
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
