General information | |
---|---|

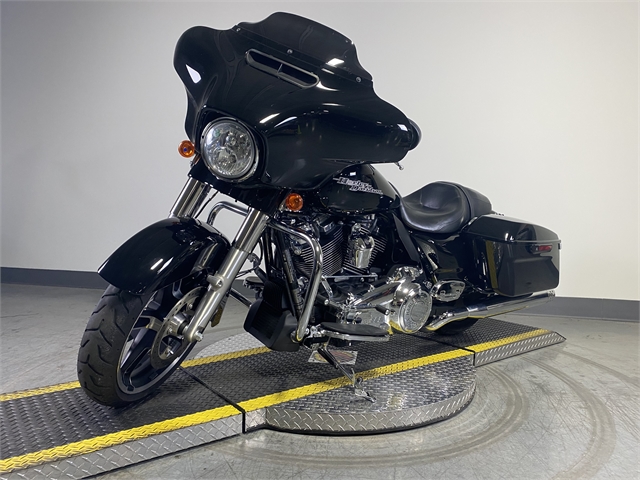

Model | Harley-Davidson Street Glide Special |
Year | 2017 |
Category | Touring |
Engine and transmission | |
Displacement | 1745.0 ccm (106.48 cubic inches) |
Engine type | V2, four-stroke |
Engine details | Milwaukee-Eight™ 107 |
Power | 90.0 HP (65.7 kW)) @ 5450 RPM |
Torque | 150.0 Nm (15.3 kgf-m or 110.6 ft.lbs) @ 3250 RPM |
Compression | 10.0:1 |
Bore x stroke | 100.0 x 111.3 mm (3.9 x 4.4 inches) |
Fuel system | Injection. ESPFI |
Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
Lubrication system | Dry sump |
Cooling system | Oil & air |
Gearbox | 6-speed |
Transmission type | Belt (final drive) |
Clutch | Multi-plate with diaphragm spring in oil bath |
Driveline | Chain, 34/46 ratio |
Fuel consumption | 5.20 litres/100 km (19.2 km/l or 45.23 mpg) |
Greenhouse gases | 120.6 CO2 g/km. (CO2 - Carbon dioxide emission) |

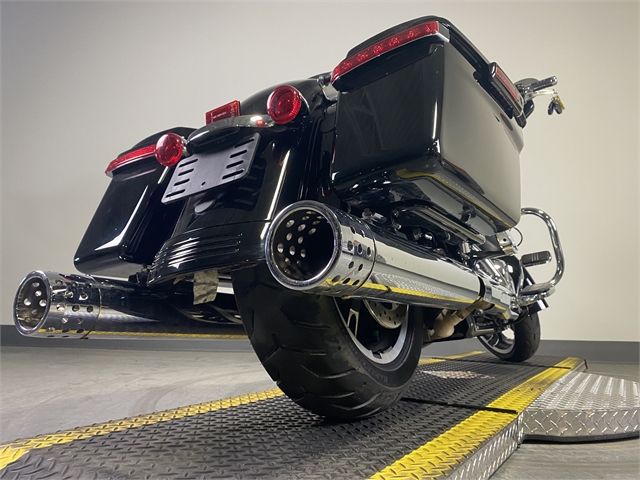

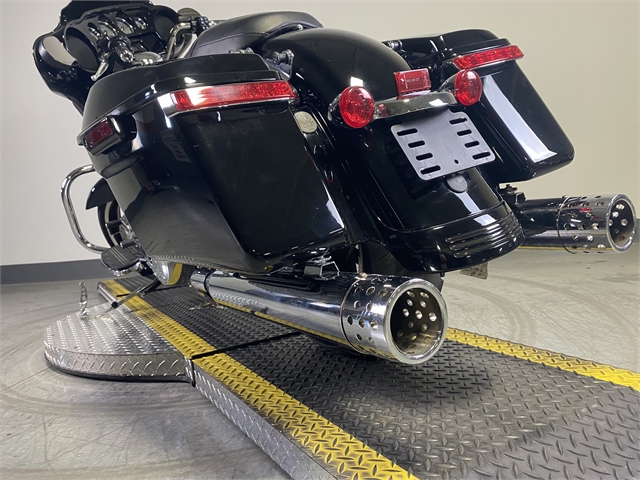

Exhaust system | Chrome, 2-1-2 dual exhaust with tapered mufflers |
Chassis, suspension, brakes and wheels | |
Rake (fork angle) | 26.0° |
Trail | 173 mm (6.8 inches) |
Front suspension | Telescopic fork |
Rear suspension | Twin shocks |
Front tire | 130/70-B19 |
Rear tire | 180/65-B16 |

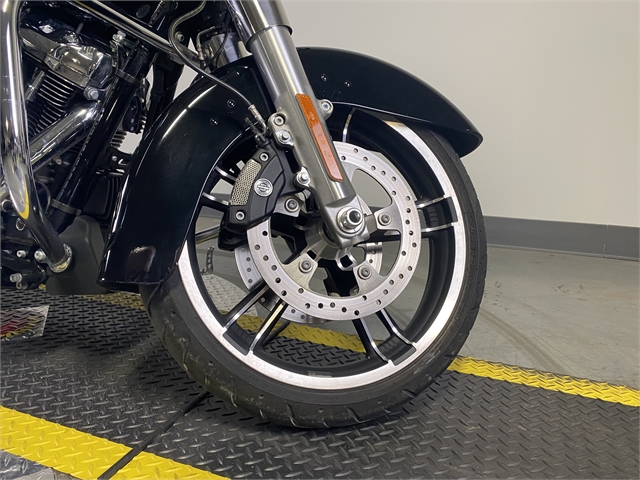

Front brakes | Double disc. ABS. 4-piston |
Rear brakes | Single disc. ABS. 4-piston |
Wheels | Enforcer Cast Aluminum |
Physical measures and capacities | |
Dry weight | 361.0 kg (795.9 pounds) |
Weight incl. oil, gas, etc | 376.0 kg (828.9 pounds) |
Power/weight ratio | 0.2493 HP/kg |
Seat height | 685 mm (27.0 inches) If adjustable, lowest setting. |
Overall length | 2425 mm (95.5 inches) |
Ground clearance | 125 mm (4.9 inches) |
Wheelbase | 1625 mm (64.0 inches) |
Fuel capacity | 22.70 litres (6.00 US gallons) |
Oil capacity | 4.90 litres (5.18 US quarts) |
Other specifications | |
Color options | Vivid Black, Black Denim, Superior Blue, Charcoal Denim, Velocity Red Sunglo, Crushed Ice Pearl, Laguna Orange, Hard Candy Black Gold Flake, Hard Candy Hot Rod Red Flake, Hard Candy Mystic Purple Flake |
Starter | Electric |
Instruments | Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
Light | High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional) |
Carrying capacity | Saddle bags |
Comments | Windshield. Cruise control. Alarm. Infotainment. |
