General information |
Model |
Harley-Davidson Ultra Limited |
Year |
2016 |
Category |
Touring |
Engine and transmission |
Displacement |
1688.0 ccm (103.00 cubic inches) |
Engine type |
V2, four-stroke |
Engine details |
Integrated Oil-Cooler |
Power |
87.0 HP (63.5 kW)) @ 5100 RPM |
Torque |
138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3750 RPM |
Compression |
9.7:1 |
Bore x stroke |
98.4 x 111.3 mm (3.9 x 4.4 inches) |
Fuel system |
Injection. Electronic Sequential Port Fuel Injection |
Fuel control |
Double Overhead Cams/Twin Cam (DOHC) |
Lubrication system |
Dry sump |
Cooling system |
Oil & air |
Gearbox |
6-speed |
Transmission type |
Belt (final drive) |
Clutch |
Multi-plate with diaphragm spring in oil bath |
Driveline |
Chain, 34/46 ratio primary drive |
Fuel consumption |
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
Greenhouse gases |
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system |
Chrome, 2-1-2 dual exhaust with tapered mufflers |
Chassis, suspension, brakes and wheels |
Rake (fork angle) |
26.0° |
Trail |
170 mm (6.7 inches) |
Front suspension |
Telescopic fork |
Rear suspension |
Twin shocks |
Front tire |
130/80-17 |
Rear tire |
180/65-16 |
Front brakes |
Double disc. ABS. 4-piston |
Rear brakes |
Single disc. ABS. 4-piston |
Wheels |
Impeller Cast Aluminum |
Physical measures and capacities |
Dry weight |
400.1 kg (882.0 pounds) |
Weight incl. oil, gas, etc |
413.2 kg (911.0 pounds) |
Power/weight ratio |
0.2175 HP/kg |
Seat height |
740 mm (29.1 inches) If adjustable, lowest setting. |
Overall length |
2600 mm (102.4 inches) |
Ground clearance |
135 mm (5.3 inches) |
Wheelbase |
1625 mm (64.0 inches) |
Fuel capacity |
22.71 litres (6.00 US gallons) |
Oil capacity |
3.80 litres (4.02 US quarts) |
Other specifications |
Color options |
Deep Jade Pearl/Vivid Black, Billet Silver/Vivid Black, Mysterious Red Sunglo/Velocity Red Sunglo, Vivid Black, Black Quartz, Amber Whiskey/Vivid Black, Purple Fire/Blackberry Smoke, Peace Officer Blue, Peace Officer Black, Firefighter Red, Arctic White, |
Starter |
Electric |

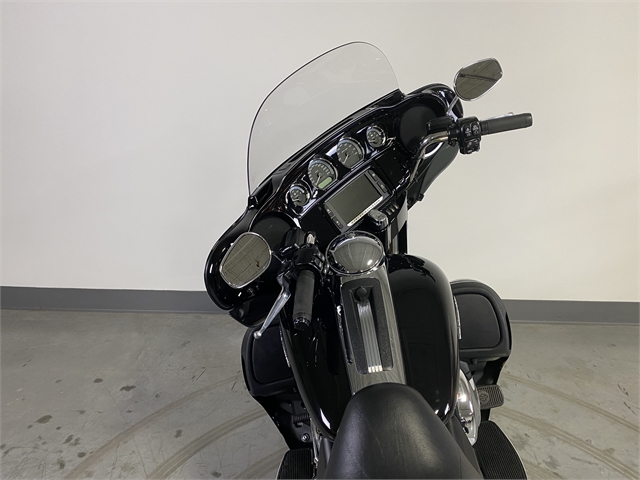

Instruments |
10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators |
Light |
High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS |

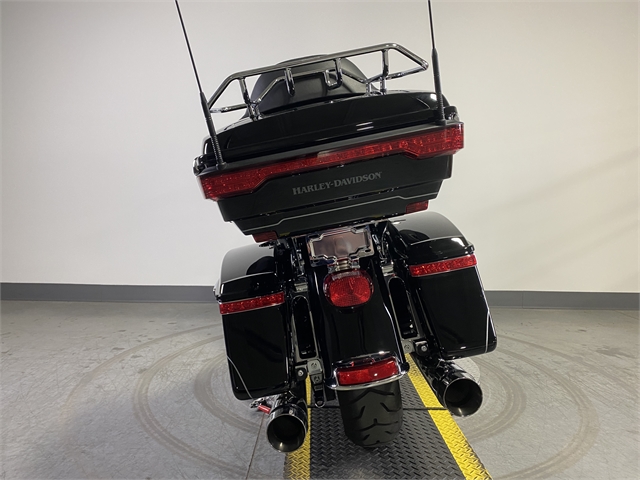

Carrying capacity |
Saddle bags, top box |
Comments |
Windshield. |
