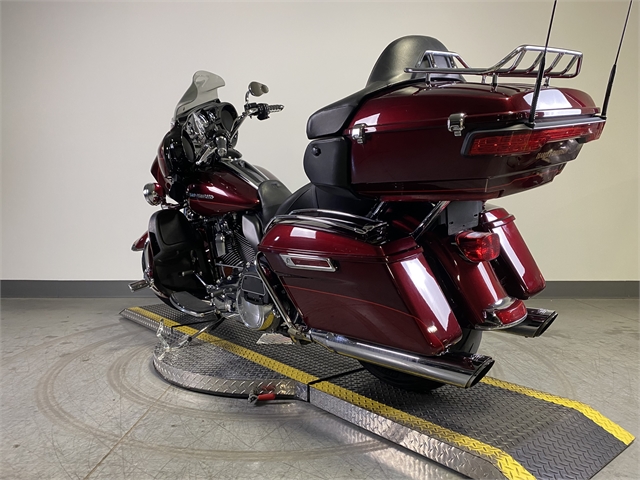

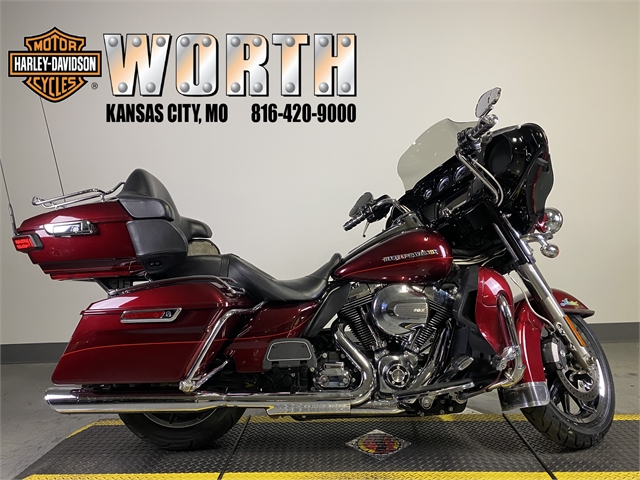

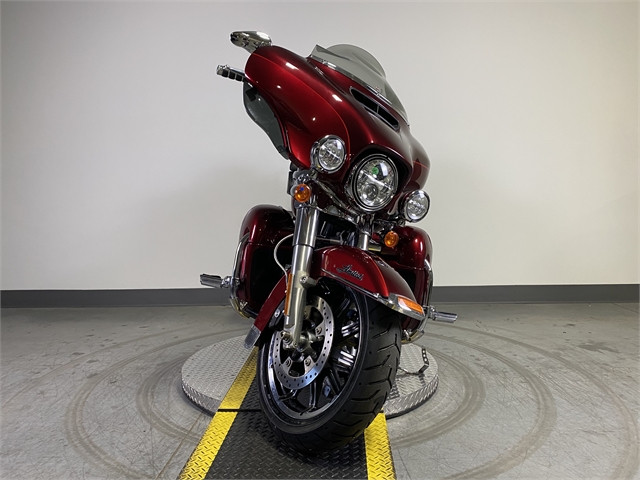

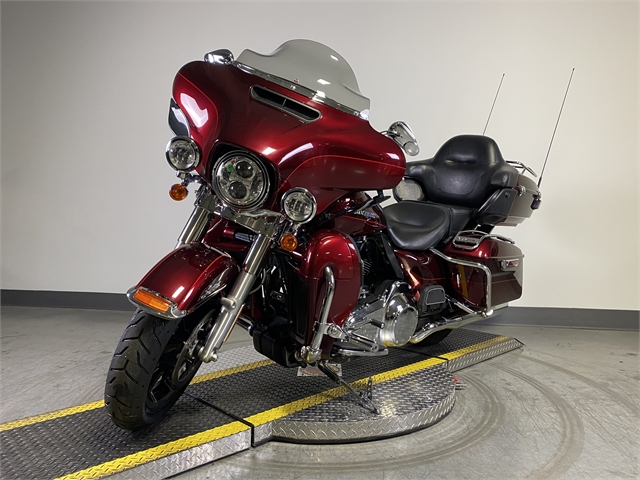

2016 Harley-Davidson Touring Ultra Limited Low

Stock #84380PW
Your Price: $21,981

219 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2016 Harley-Davidson Touring Ultra Limited Low . You can reach me at or by phone at .
If you want the full-on Harley-Davidson Ultra Touring experience in a lower form, throw a leg over the Ultra Limited Low. No other full-dress Grand American touring machine puts you closer to the pavement.



General information
Model Harley-Davidson Ultra Limited Low
Year 2016
Category Touring
Engine and transmission
Displacement 1688.0 ccm (103.00 cubic inches)

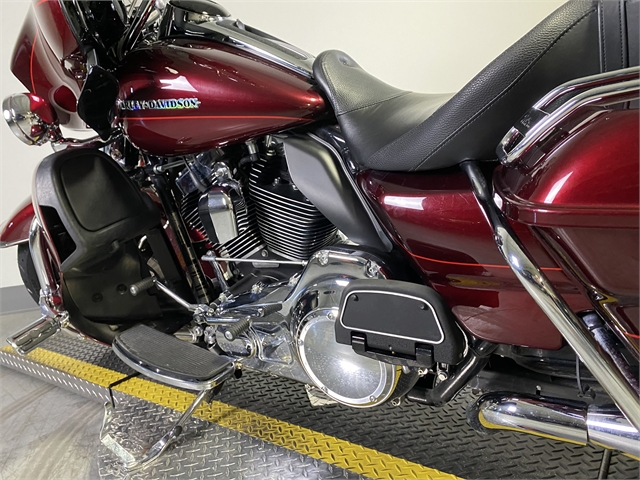

Engine type V2, four-stroke
Engine details Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Power 87.0 HP (63.5 kW)) @ 5100 RPM
Torque 138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3750 RPM
Compression 9.7:1
Bore x stroke 98.4 x 111.3 mm (3.9 x 4.4 inches)
Fuel system Injection. Electronic Sequential Port Fuel Injection
Lubrication system Dry sump
Cooling system Oil & air
Gearbox 6-speed
Transmission type Belt   (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Driveline Chain, 34/46 ratio primary drive
Fuel consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

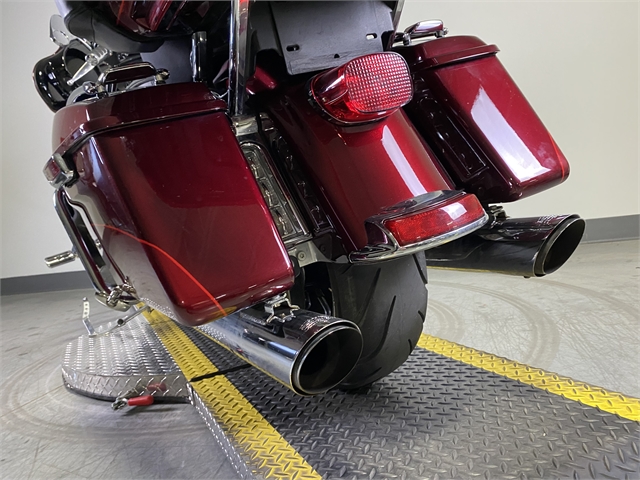

Exhaust system Chrome, 2-1-2 dual exhaust with tapered mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle) 26.0°
Trail 170 mm (6.7 inches)
Front suspension Telescopic fork
Rear suspension Twin shocks
Front tire 130/80-17
Rear tire 180/65-16

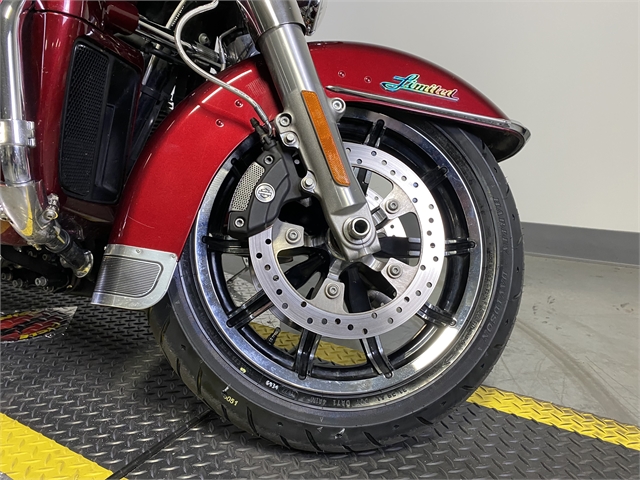

Front brakes Double disc. ABS. 4-piston
Rear brakes Single disc. ABS. 4-piston
Wheels Contrast Chrome Impeller Cast Aluminum
Physical measures and capacities
Dry weight 398.0 kg (877.4 pounds)
Weight incl. oil, gas, etc 414.0 kg (912.7 pounds)
Power/weight ratio 0.2186 HP/kg
Seat height 685 mm (27.0 inches) If adjustable, lowest setting.
Overall length 2600 mm (102.4 inches)
Ground clearance 115 mm (4.5 inches)
Wheelbase 1625 mm (64.0 inches)
Fuel capacity 22.71 litres (6.00 US gallons)
Oil capacity 3.80 litres (4.02 US quarts)
Other specifications
Color options Deep Jade Pearl/Vivid Black, Billet Silver/Vivid Black, Mysterious Red Sunglo/Velocity Red Sunglo, Vivid Black, Black Quartz, Amber Whiskey/Vivid Black, Cosmic Blue Perl.
Instruments 10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators
Light High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS
Carrying capacity Saddle bags, top box
Comments Windshield. Cruse Control. Alarm.
  • Status:
    Pre-Owned
  • Vehicle:
    2016 Harley-Davidson Touring Ultra Limited Low

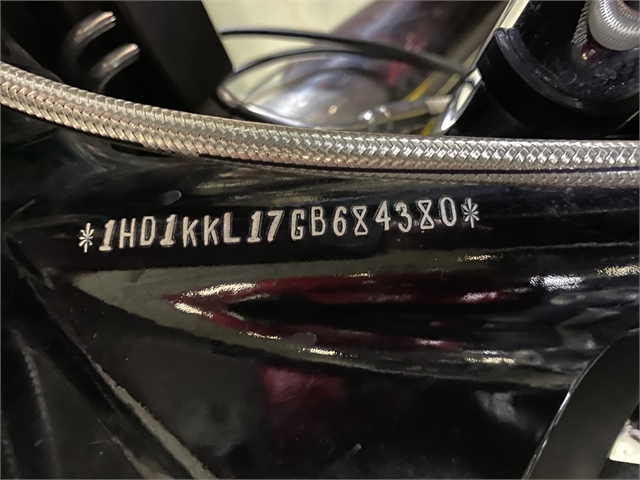

  • VIN:
    1HD1KKL17GB684380
  • Model Number:
    FLHTKL
  • Mileage:
    27,125 miles
  • Color:
    Two-Tone Mysterious Red Sunglo / Velocity Red Sunglo
  • Stock Number:
    84380PW
  • Title:
    Clear
  • Location:
    Worth Harley-Davidson
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Boom!™ Box 6.5GT
  • Number Of Speakers:
    4

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Adjustable:
    Yes
  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • Heated Hand Grip Location:
    Driver

ENGINE

  • Bore (in):
    3.87
  • Bore (mm):
    98.3
  • CAN Liters Per Kilometer (Combined):
    5.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1689.5
  • Displacement (ci):
    103.1
  • Engine Brand Name:
    Twin-Cooled™ High-Output Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.37
  • Stroke (mm):
    111
  • Torque (Ft Lbs):
    105.5
  • Torque (Nm):
    143
  • Torque RPM:
    3750
  • US Miles Per Gallon (Combined):
    42
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver and Passenger
  • Frame:
    Steel
  • Saddle Bag Guard:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick
  • Tank Divider Material:
    Leather

GLASS

  • Folding:
    Yes
  • Height:
    Mid
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Backrest Location:
    Passenger
  • Backrest Type:
    Fixed
  • Lumbar Adjustment:
    Yes
  • Number Of Seats:
    2
  • Seat Height (in):
    27
  • Seat Height (mm):
    685.8
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Bag Liner Material:
    Vinyl
  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Rear Rack Storage Material:
    Hard Vinyl
  • Rear Rack Storage Trim:
    Plain
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    49
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    390.5
  • Dry Weight (lbs):
    861
  • Engine Displacement to Weight (cc):
    1.96
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    4.6
  • Ground Clearance (mm):
    116.8
  • Length (ft):
    8.53
  • Length (ft/ft):
    8
  • Length (ft/in):
    6.4
  • Length (in):
    102.4
  • Length (mm):
    2601
  • Storage Capacity (cuft):
    4.7
  • Storage Capacity (gal):
    30.2
  • Storage Capacity (l):
    133.1
  • Wet Weight (kg):
    406.4
  • Wet Weight (lbs):
    896
  • Wheelbase (in):
    64
  • Wheelbase (mm):
    1625.6

TRANSMISSION

  • Gear Ratio (1):
    9.593
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.938
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.407
  • Gear Ratio (6):
    2.875
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Chromed:
    Yes
  • Front Tire (Full Spec):
    Dunlop® Multi-Tread™ 130/80 R17 65H
  • Front Tire Aspect Ratio:
    80
  • Front Tire Speed Rating:
    65H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    17
  • Rear Tire (Full Spec):
    Dunlop® Multi-Tread™ 180/65 R16 81H
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Speed Rating:
    81H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
