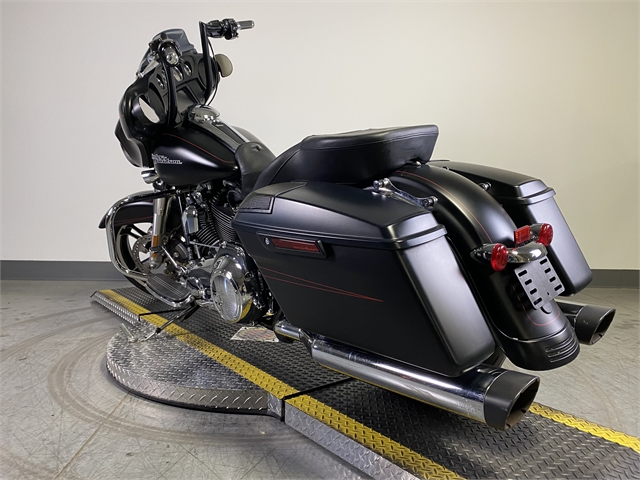

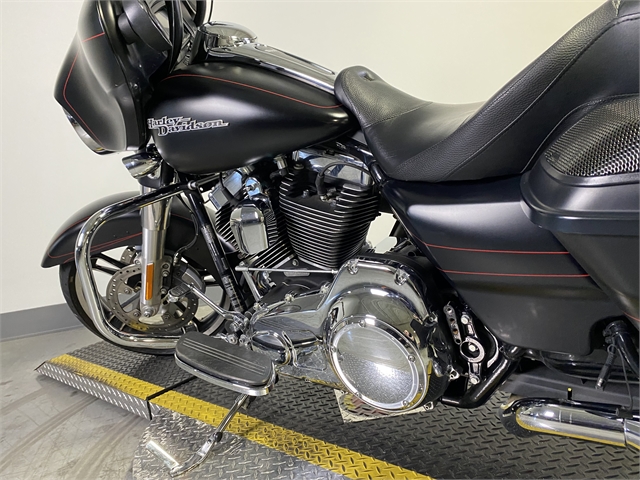

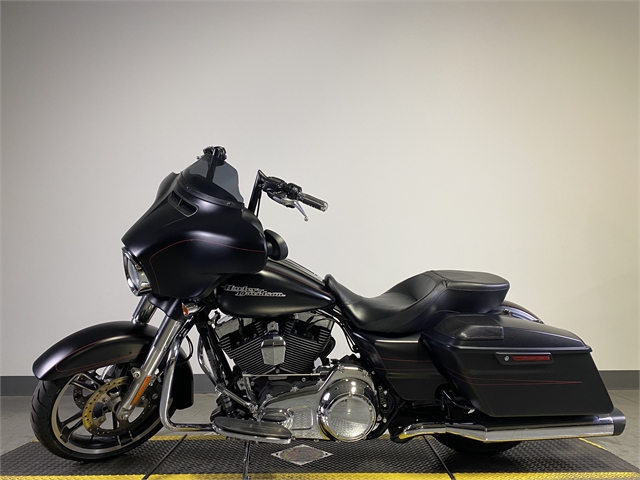

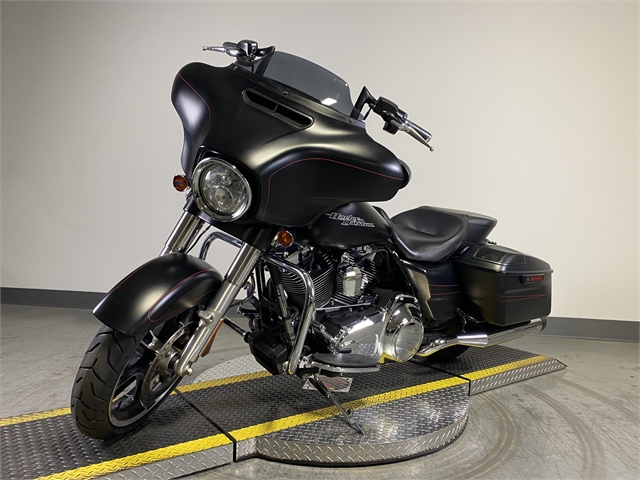

2016 Harley-Davidson Touring Street Glide Special

Stock #16158TW
Your Price: $22,981

156 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2016 Harley-Davidson Touring Street Glide Special . You can reach me at or by phone at .
Confidence. Control. High-performance dual disc Brembo® brakes offer consistent stopping power at all speeds. The 4-piston front and rear caliper with dual front rotor brake system is state of the art and top of the line. It´s just another way The Motor Company puts a high level of detail into their bikes to give you peace of mind throughout your journey.



General information
Model Harley-Davidson Street Glide Special
Year 2016
Category Touring
Engine and transmission
Displacement 1688.0 ccm (103.00 cubic inches)
Engine type V2, four-stroke
Engine details Integrated Oil-Cooler
Power 87.0 HP (63.5 kW)) @ 5100 RPM
Torque 138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3250 RPM
Compression 9.7:1
Bore x stroke 98.4 x 111.3 mm (3.9 x 4.4 inches)
Fuel system Injection. ESPFI
Fuel control Double Overhead Cams/Twin Cam (DOHC)
Ignition Single-fire, non-wasted, map-controlled spark ignition
Lubrication system Dry sump
Cooling system Oil & air
Gearbox 6-speed
Transmission type Belt   (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Driveline Chain, 34/46 ratio
Fuel consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis, suspension, brakes and wheels
Frame type Mild steel, square-section backbone, twin downtubes
Rake (fork angle) 26.0°
Trail 173 mm (6.8 inches)
Front suspension Telescopic fork
Front wheel travel 117 mm (4.6 inches)
Rear suspension Twin shocks
Rear wheel travel 51 mm (2.0 inches)
Front tire 130/70-BW18
Rear tire 180/65-BW16
Front brakes Double disc. ABS. 4-piston
Diameter 292 mm (11.5 inches)
Rear brakes Single disc. ABS. 4-piston
Diameter 292 mm (11.5 inches)
Physical measures and capacities
Dry weight 356.0 kg (784.8 pounds)
Weight incl. oil, gas, etc 372.0 kg (820.1 pounds)
Power/weight ratio 0.2444 HP/kg
Seat height 695 mm (27.4 inches) If adjustable, lowest setting.
Overall length 2451 mm (96.5 inches)
Ground clearance 135 mm (5.3 inches)
Wheelbase 1625 mm (64.0 inches)
Fuel capacity 22.70 litres (6.00 US gallons)
Oil capacity 3.80 litres (4.02 US quarts)
Other specifications
Color options Deep Jade Pearl, Amber Whiskey, Cosmic Blue Pearl, Hard Candy Black Gold Flake, Hard Candy Gold Flake, Vivid Black, Black Denim, Charcoal Denim, Velocity Red Sunglo.
Starter Electric

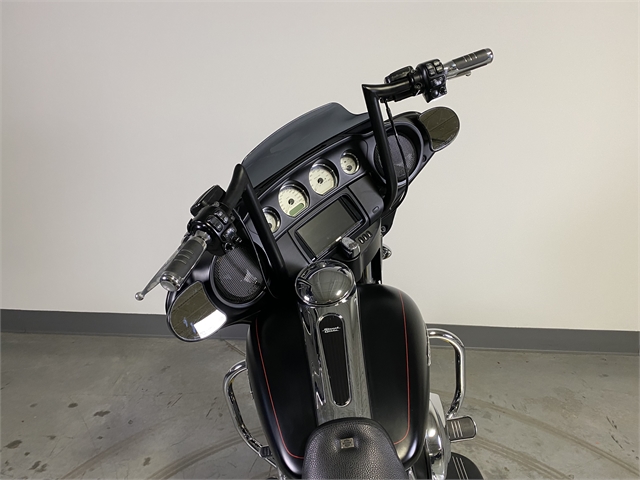

Instruments Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Light High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
Carrying capacity Saddle bags
Comments Windshield. Cruise control. Alarm.
  • Status:
    Pre-Owned
  • Vehicle:
    2016 Harley-Davidson Touring Street Glide Special

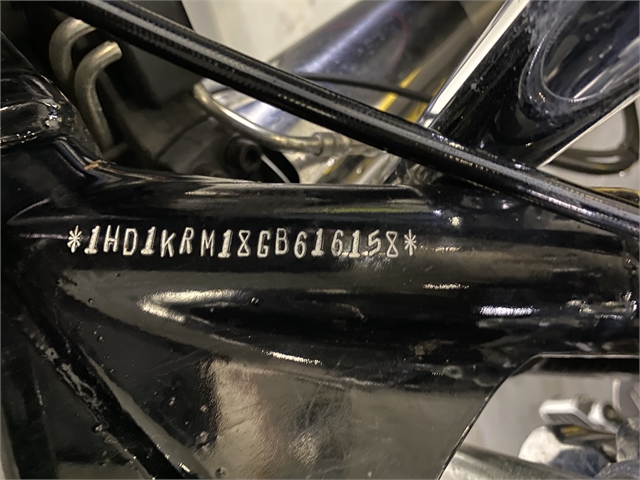

  • VIN:
    1HD1KRM18GB616158
  • Model Number:
    FLHXS
  • Mileage:
    19,713 miles
  • Color:
    Black Denim
  • Stock Number:
    16158TW
  • Title:
    Clear
  • Location:
    Worth Harley-Davidson
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Boom!™ Box 6.5GT
  • Number Of Speakers:
    2

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)

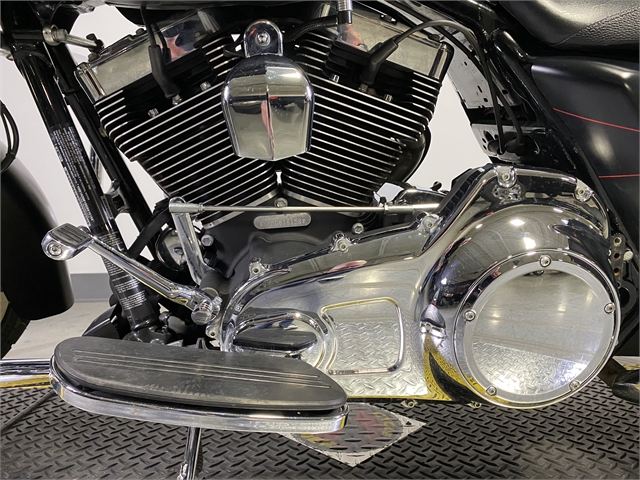

ENGINE

  • Bore (in):
    3.87
  • Bore (mm):
    98.3
  • CAN Liters Per Kilometer (Combined):
    5.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.7
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1689.5
  • Displacement (ci):
    103.1
  • Engine Brand Name:
    High-Output Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.37
  • Stroke (mm):
    111
  • Torque (Ft Lbs):
    104.7
  • Torque (Nm):
    142
  • Torque RPM:
    3250
  • US Miles Per Gallon (Combined):
    42
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Hand Guards:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Height:
    Low
  • Tinted:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    27.4
  • Seat Height (mm):
    696
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    49
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    351.5
  • Dry Weight (lbs):
    775
  • Engine Displacement to Weight (cc):
    2.18
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    5.3
  • Ground Clearance (mm):
    134.6
  • Length (ft):
    8.04
  • Length (ft/ft):
    8
  • Length (ft/in):
    0.5
  • Length (in):
    96.5
  • Length (mm):
    2451.1
  • Storage Capacity (cuft):
    2.3
  • Storage Capacity (gal):
    14.8
  • Storage Capacity (l):
    65.1
  • Wet Weight (kg):
    367.4
  • Wet Weight (lbs):
    810
  • Wheelbase (in):
    64
  • Wheelbase (mm):
    1625.6

TRANSMISSION

  • Gear Ratio (1):
    9.593
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.938
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.407
  • Gear Ratio (6):
    2.875
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® Multi-Tread® 130/60 R19 61H
  • Front Tire Aspect Ratio:
    60
  • Front Tire Speed Rating:
    61H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    Dunlop® Multi-Tread® 180/65 R16 81H
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Speed Rating:
    81H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
