General information |
Model |
Harley-Davidson Street Glide Special |
Year |
2016 |
Category |
Touring |

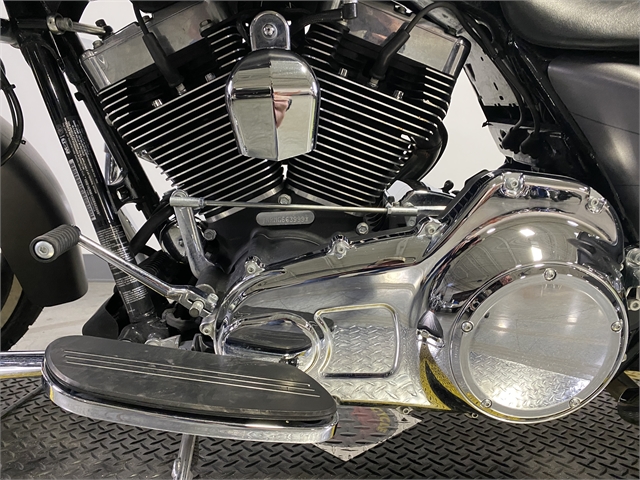

Engine and transmission |
Displacement |
1688.0 ccm (103.00 cubic inches) |
Engine type |
V2, four-stroke |
Engine details |
Integrated Oil-Cooler |
Power |
87.0 HP (63.5 kW)) @ 5100 RPM |
Torque |
138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3250 RPM |
Compression |
9.7:1 |
Bore x stroke |
98.4 x 111.3 mm (3.9 x 4.4 inches) |
Fuel system |
Injection. ESPFI |
Fuel control |
Double Overhead Cams/Twin Cam (DOHC) |
Ignition |
Single-fire, non-wasted, map-controlled spark ignition |
Lubrication system |
Dry sump |
Cooling system |
Oil & air |
Gearbox |
6-speed |
Transmission type |
Belt (final drive) |
Clutch |
Multi-plate with diaphragm spring in oil bath |
Driveline |
Chain, 34/46 ratio |
Fuel consumption |
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
Greenhouse gases |
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type |
Mild steel, square-section backbone, twin downtubes |
Rake (fork angle) |
26.0° |
Trail |
173 mm (6.8 inches) |
Front suspension |
Telescopic fork |
Front wheel travel |
117 mm (4.6 inches) |
Rear suspension |
Twin shocks |
Rear wheel travel |
51 mm (2.0 inches) |
Front tire |
130/70-BW18 |
Rear tire |
180/65-BW16 |
Front brakes |
Double disc. ABS. 4-piston |
Diameter |
292 mm (11.5 inches) |
Rear brakes |
Single disc. ABS. 4-piston |
Diameter |
292 mm (11.5 inches) |
Physical measures and capacities |
Dry weight |
356.0 kg (784.8 pounds) |
Weight incl. oil, gas, etc |
372.0 kg (820.1 pounds) |
Power/weight ratio |
0.2444 HP/kg |
Seat height |
695 mm (27.4 inches) If adjustable, lowest setting. |
Overall length |
2451 mm (96.5 inches) |
Ground clearance |
135 mm (5.3 inches) |
Wheelbase |
1625 mm (64.0 inches) |
Fuel capacity |
22.70 litres (6.00 US gallons) |
Oil capacity |
3.80 litres (4.02 US quarts) |
Other specifications |
Color options |
Deep Jade Pearl, Amber Whiskey, Cosmic Blue Pearl, Hard Candy Black Gold Flake, Hard Candy Gold Flake, Vivid Black, Black Denim, Charcoal Denim, Velocity Red Sunglo. |
Starter |
Electric |

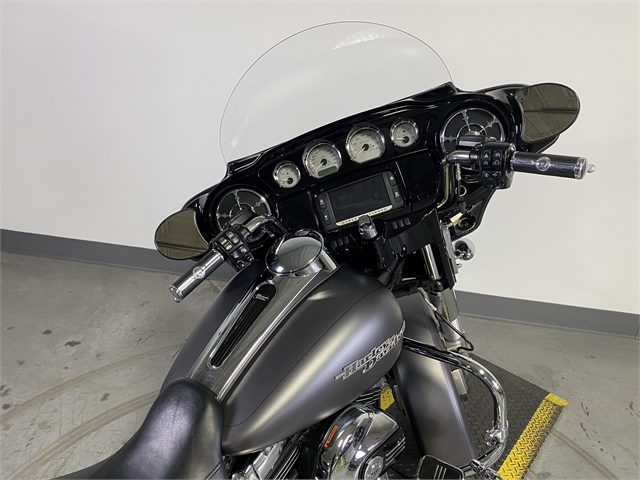

Instruments |

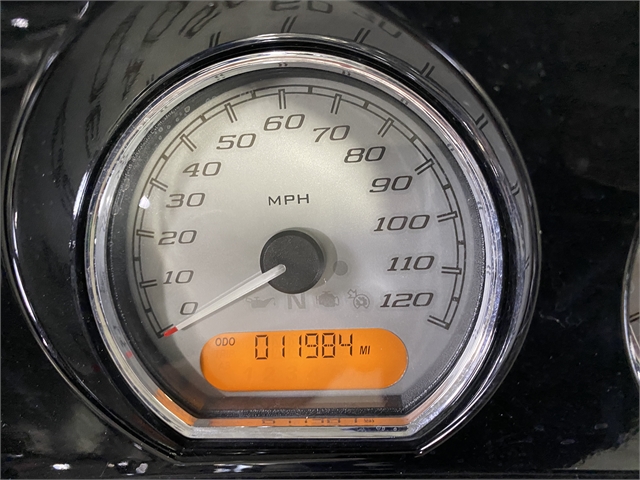

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
Light |
High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional) |
Carrying capacity |
Saddle bags |
Comments |
Windshield. Cruise control. Alarm. |
