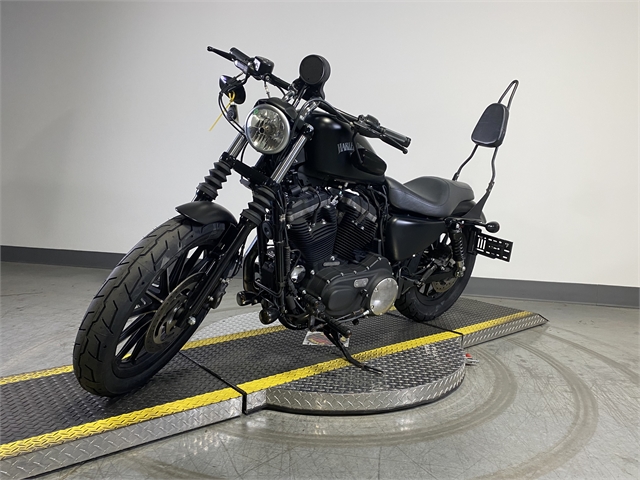

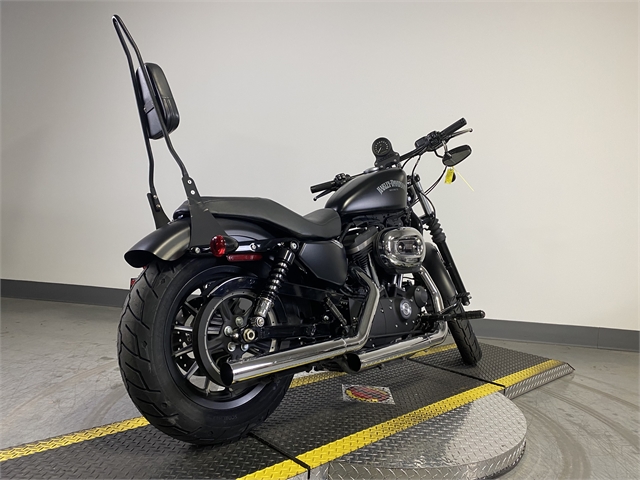

2015 Harley-Davidson Sportster Iron 883

Stock #19252PW
Your Price: $7,981

96 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2015 Harley-Davidson Sportster Iron 883 . You can reach me at or by phone at .

Like riding itself, you can never go too far when it comes to improving a bike’s brakes. This is why we gave the brake system of each Sportster® model a complete overhaul designed to improve performance, fit and finish. We increased the size of the brake rotors from 292mm to 300mm and added a more powerful, stylized front caliper with 34mm pistons and stylized rear caliper to match.



General information
Model Harley-Davidson Sportster Iron 883
Year 2015
Category Custom / cruiser
Engine and transmission
Displacement 883.3 ccm (53.90 cubic inches)
Engine type V2, four-stroke
Engine details Air-cooled, Evolution®
Power 52.3 HP (38.2 kW)) @ 5750 RPM
Torque 73.0 Nm (7.4 kgf-m or 53.8 ft.lbs) @ 3750 RPM
Compression 8.9:1
Bore x stroke 76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system Dry sump
Cooling system Air
Gearbox 6-speed
Transmission type Belt   (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Fuel consumption 4.61 litres/100 km (21.7 km/l or 51.02 mpg)
Greenhouse gases 107.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle) 30.5°
Trail 117 mm (4.6 inches)
Front tire 100/90-B19
Rear tire 150/80-B16
Front brakes Single disc. Optional ABS
Diameter 300 mm (11.8 inches)
Rear brakes Single disc
Diameter 300 mm (11.8 inches)
Wheels Black, 13-Spoke Cast Aluminum
Physical measures and capacities
Dry weight 251.0 kg (553.3 pounds)
Weight incl. oil, gas, etc 260.0 kg (573.2 pounds)
Power/weight ratio 0.2084 HP/kg
Seat height 653 mm (25.7 inches) If adjustable, lowest setting.
Overall length 2179 mm (85.8 inches)
Ground clearance 100 mm (3.9 inches)
Wheelbase 1519 mm (59.8 inches)
Fuel capacity 12.49 litres (3.30 US gallons)
Oil capacity 2.60 litres (2.75 US quarts)
Other specifications
Color options Hard Candy Quicksilver Flake, Sand Cammo Denim, Black Denim, Brilliant Silver Pearl
Starter Electric
Instruments Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Light High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
  • Status:
    Pre-Owned
  • Vehicle:
    2015 Harley-Davidson Sportster Iron 883

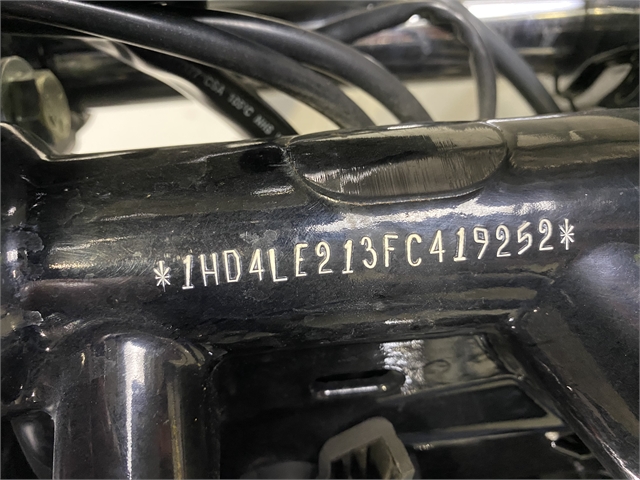

  • VIN:
    1HD4LE213FC419252
  • Model Number:
    XL883N

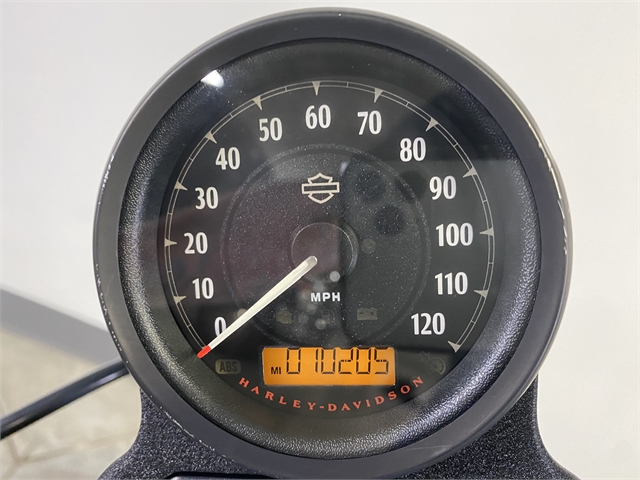

  • Mileage:
    10,205 miles
  • Color:
    Black Denim
  • Stock Number:
    19252PW
  • Title:
    Clear
  • Location:
    Worth Harley-Davidson
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    11.8
  • Front Brake Diameter (mm):
    300
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    11.8
  • Rear Brake Diameter (mm):
    300
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3
  • Bore (mm):
    76.2
  • CAN Liters Per Kilometer (Combined):
    4.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.0
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    883.3
  • Displacement (ci):
    53.9
  • Engine Brand Name:
    Evolution®
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    3.81
  • Stroke (mm):
    96.8
  • Torque (Ft Lbs):
    53.8
  • Torque (Nm):
    72.9
  • Torque RPM:
    3750
  • US Miles Per Gallon (Combined):
    51
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Belt Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    28.9
  • Seat Height (mm):
    734.1
  • Seat Location:
    Driver
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    244.9
  • Dry Weight (lbs):
    540
  • Engine Displacement to Weight (cc):
    1.64
  • Fuel Capacity (gal):
    3.3
  • Fuel Capacity (l):
    12.5
  • Ground Clearance (in):
    4.7
  • Ground Clearance (mm):
    119.4
  • Length (ft):
    7.4
  • Length (ft/ft):
    7
  • Length (ft/in):
    4.8
  • Length (in):
    88.8
  • Length (mm):
    2255.5
  • Wet Weight (kg):
    254.9
  • Wet Weight (lbs):
    562
  • Wheelbase (in):
    59.5
  • Wheelbase (mm):
    1511.3

TRANSMISSION

  • Gear Ratio (1):
    10.41
  • Gear Ratio (2):
    7.436
  • Gear Ratio (3):
    5.531
  • Gear Ratio (4):
    4.584
  • Gear Ratio (5):
    3.931
  • Number Of Speeds:
    5
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Michelin® Scorcher™ 100/90 R19 57H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    57H
  • Front Tire Width:
    100
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    Michelin® Scorcher™ 150/80 R16 71H
  • Rear Tire Aspect Ratio:
    80
  • Rear Tire Speed Rating:
    71H
  • Rear Tire Width:
    150
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Michelin®
  • Wheels Composition:
    Aluminum
