General information |
Model |

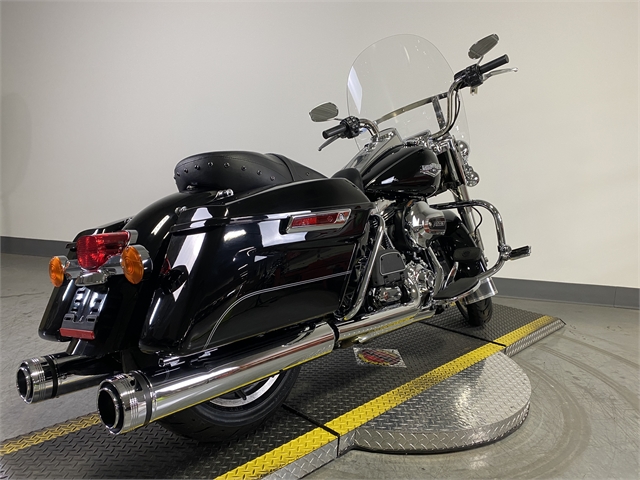

Harley-Davidson Road King |
Year |
2014 |
Category |
Touring |
Engine and transmission |
Displacement |
1688.0 ccm (103.00 cubic inches) |
Engine type |
V2, four-stroke |
Engine details |

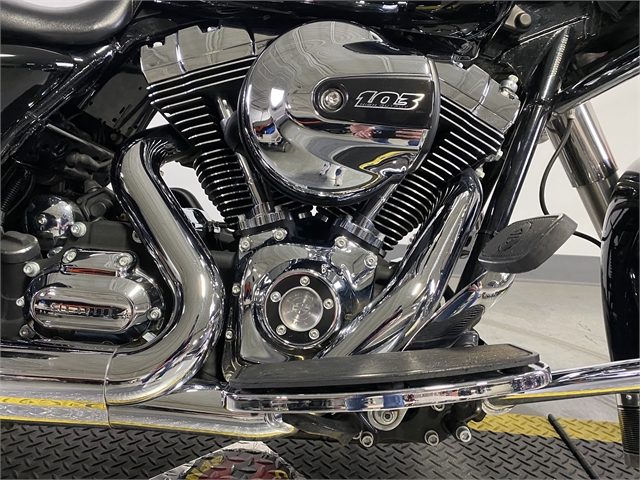

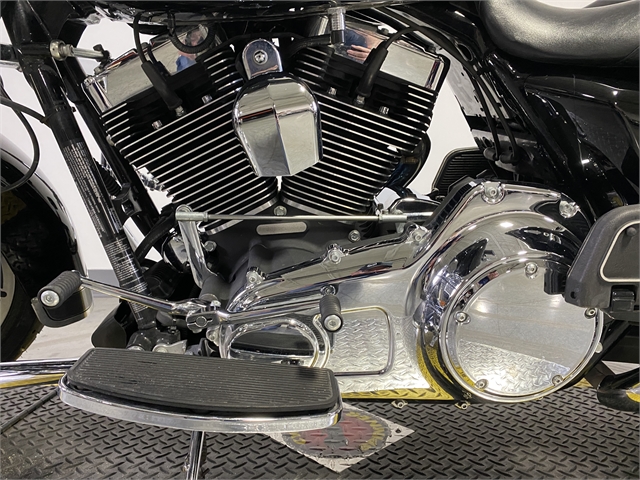

Air-cooled Twin Cam 103™ with Integrated Oil-Cooler |
Torque |
135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
Compression |
9.6:1 |
Bore x stroke |
98.4 x 111.3 mm (3.9 x 4.4 inches) |
Fuel system |
Injection. Electronic Sequential Port Fuel Injection |
Lubrication system |
Dry sump |
Cooling system |
Air |
Gearbox |
6-speed |
Transmission type |
Belt (final drive) |
Clutch |
Multi-plate with diaphragm spring in oil bath |
Driveline |
Chain, 34/46 ratio primary drive |
Fuel consumption |
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
Greenhouse gases |
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system |
Chrome, 2-1-2 dual exhaust with tapered mufflers |
Chassis, suspension, brakes and wheels |
Rake (fork angle) |
26.0° |
Trail |
170 mm (6.7 inches) |
Front tire |
130/80-B17 |
Rear tire |
180/65-B16 |
Front brakes |
Single disc. 4-piston |
Rear brakes |
Single disc. 2-piston |
Wheels |
Black, 28-spoke Cast Aluminum |
Physical measures and capacities |
Dry weight |
355.2 kg (783.0 pounds) |
Weight incl. oil, gas, etc |
367.9 kg (811.0 pounds) |
Seat height |
678 mm (26.7 inches) If adjustable, lowest setting. |
Overall length |
2464 mm (97.0 inches) |
Ground clearance |
130 mm (5.1 inches) |
Wheelbase |
1613 mm (63.5 inches) |
Fuel capacity |
22.71 litres (6.00 US gallons) |
Oil capacity |
3.80 litres (4.02 US quarts) |
Other specifications |
Color options |
Sand Pearl/Canyon Brown Pearl,Amber Whiskey/Brilliant Silver, Big Blue Pearl/Vivid Black,Mysterious Red Sunglo,Brilliant Silver Pearl,Vivid Black |
Instruments |
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light |
Light |
High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional) |
Carrying capacity |
Saddle bags |
Comments |
Windshield |
