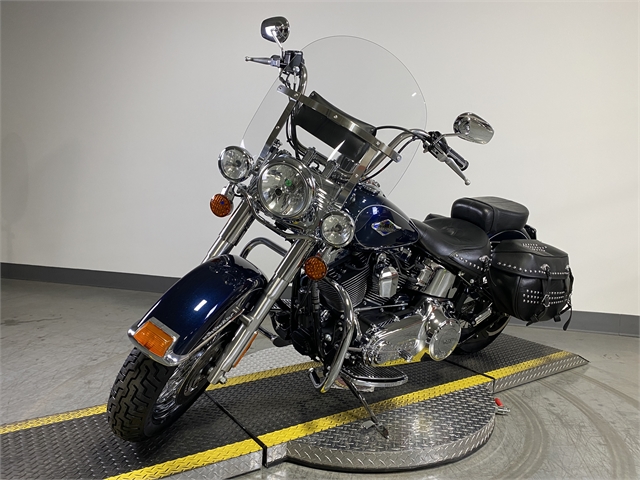

2013 Harley-Davidson Heritage Softail Classic

Stock #24799TW
Your Price: $13,981

80 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2013 Harley-Davidson Heritage Softail Classic . You can reach me at or by phone at .
Description

Blazing from the past with original dresser spirit and modern touring capabilities. Do laced wheels, whitewalls and studded leather add to the way a bike feels on the road? Of course they do. It´s these extras that make the Heritage Softail® Classic model the quintessential boulevard cruiser.



General information
Model Harley-Davidson Heritage Softail Classic
Year 2013
Category Touring
Engine and transmission
Displacement 1688.0 ccm (103.00 cubic inches)
Engine type V2, four-stroke
Engine details Air-cooled, Twin Cam 103B™
Torque 131.4 Nm (13.4 kgf-m or 96.9 ft.lbs) @ 3000 RPM
Compression 9.6:1
Bore x stroke 98.4 x 111.1 mm (3.9 x 4.4 inches)
Fuel system Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system Air
Gearbox 6-speed
Transmission type Belt   (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Fuel consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle) 31.0°
Trail 147 mm (5.8 inches)
Front tire MT90-B16
Rear tire 150/80-B16
Front brakes Single disc. 4-piston
Rear brakes Single disc. 2-piston
Wheels Steel Laced
Physical measures and capacities
Dry weight 326.1 kg (719.0 pounds)
Weight incl. oil, gas, etc 341.1 kg (752.0 pounds)
Seat height 648 mm (25.5 inches) If adjustable, lowest setting.
Overall length 2400 mm (94.5 inches)
Ground clearance 130 mm (5.1 inches)
Wheelbase 1638 mm (64.5 inches)
Fuel capacity 18.93 litres (5.00 US gallons)
Oil capacity 3.30 litres (3.49 US quarts)
Other specifications
Color options Anniversary Vintage Bronze/Anniversary Vintage Black, Midnight Pearl/Brilliant Silver Pearl, White Hot Pearl, Big Blue Pearl, Vivid Black, custom colors.
Starter Electric
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Light High beam, front fender running lights, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
Comments Windshield
  • Status:
    Pre-Owned
  • Vehicle:
    2013 Harley-Davidson Heritage Softail Classic
  • VIN:
    1HD1BWV1XDB024799
  • Model Number:
    FLSTC
  • Mileage:
    18,581 miles
  • Color:
    Big Blue Pearl
  • Stock Number:
    24799TW
  • Title:
    Clear
  • Location:
    Worth Harley-Davidson
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    11.5
  • Front Brake Diameter (mm):
    292.1
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    11.5
  • Rear Brake Diameter (mm):
    292.1
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3.88
  • Bore (mm):
    98.5
  • CAN Liters Per Kilometer (Combined):
    5.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.6
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1687.9
  • Displacement (ci):
    103
  • Engine Brand Name:
    Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.3
  • Torque (Ft Lbs):
    96.9
  • Torque (Nm):
    131.4
  • Torque RPM:
    3000
  • US Miles Per Gallon (Combined):
    42
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Belt Guard:
    Yes
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes
  • Height:
    High
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Backrest Location:
    Passenger
  • Backrest Type:
    Detachable
  • Number Of Seats:
    2
  • Seat Height (in):
    27.1
  • Seat Height (mm):
    688.3
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    Two-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Location:
    Left and Right Side
  • Number Of Saddle Bags:
    2
  • Saddle Bag Material:
    Leather
  • Saddle Bag Trim:
    Studded

SUSPENSION

  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    326.1
  • Dry Weight (lbs):
    719
  • Engine Displacement to Weight (cc):
    2.35
  • Fuel Capacity (gal):
    5
  • Fuel Capacity (l):
    18.9
  • Ground Clearance (in):
    5.1
  • Ground Clearance (mm):
    129.5
  • Length (ft):
    7.88
  • Length (ft/ft):
    7
  • Length (ft/in):
    10.5
  • Length (in):
    94.5
  • Length (mm):
    2400.3
  • Wet Weight (kg):
    341.1
  • Wet Weight (lbs):
    752
  • Wheelbase (in):
    64.5
  • Wheelbase (mm):
    1638.3

TRANSMISSION

  • Gear Ratio (1):
    9.31
  • Gear Ratio (2):
    6.45
  • Gear Ratio (3):
    4.79
  • Gear Ratio (4):
    3.88
  • Gear Ratio (5):
    3.31
  • Gear Ratio (6):
    2.79
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Chromed:
    Yes
  • Front Tire (Full Spec):
    Dunlop® MT90B16 72H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    72H
  • Front Wheel Diameter:
    16
  • Rear Tire (Full Spec):
    Dunlop® 150/80 R16 71H
  • Rear Tire Aspect Ratio:
    80
  • Rear Tire Speed Rating:
    71H
  • Rear Tire Width:
    150
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Steel
