2012 Harley-Davidson Trike Tri Glide Ultra Classic

Stock #56536TW
Your Price: $27,981

285 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2012 Harley-Davidson Trike Tri Glide Ultra Classic . You can reach me at or by phone at .
The Tri Glide™ Ultra Classic® is a full-feature, factory motorcycle built to confidently chase the horizon with long-haul comfort and freedom on three wheels. The Harley-Davidson® Trike platform brings original-equipment design, quality and service to the three-wheel motorcycle segment.



General information
Model Harley-Davidson FLHTCUTG Tri Glide Ultra Classic
Year 2012
Category Custom / cruiser
Engine and transmission
Displacement 1688.0 ccm (103.00 cubic inches)
Engine type V2, four-stroke

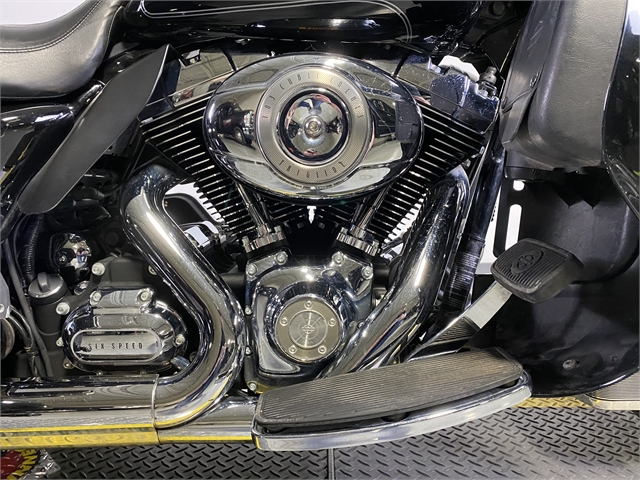

Engine details Air-cooled, Twin Cam 103™. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters.
Torque 135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM
Compression 9.6:1
Bore x stroke 98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves per cylinder 2
Fuel system Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system Pressurized, dry-sump with oil cooler
Cooling system Air
Gearbox 6-speed
Transmission type Belt   (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Driveline Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio
Fuel consumption 6.19 litres/100 km (16.2 km/l or 38.00 mpg)
Greenhouse gases 143.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system Chrome, 2-1-2 dual exhaust with tapered mufflers
Chassis, suspension, brakes and wheels
Frame type Mild steel, square-section backbone with twin downtubes
Rake (fork angle) 26.0°
Trail 170 mm (6.7 inches)
Front suspension 41.3 mm telescopic, triple circuit damping
Front wheel travel 117 mm (4.6 inches)
Rear suspension Air-adjustable shocks.
Rear wheel travel 76 mm (3.0 inches)
Front tire 130/80-NW17
Rear tire 205/65-P15

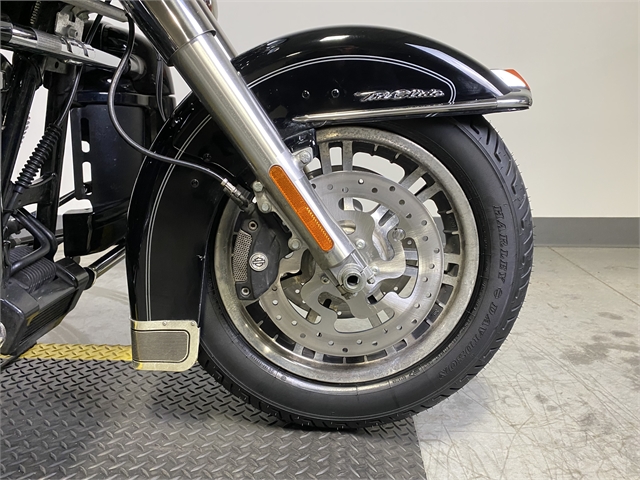

Front brakes Double disc. 4-piston calipers
Diameter 300 mm (11.8 inches)
Rear brakes Single disc. 4-piston caliper.
Diameter 228 mm (9.0 inches)
Wheels Black, 7-spoke Cast Aluminum
Seat One-piece, two-up Ultra Classic® Electra Glide® comfort stitch seat
Physical measures and capacities
Dry weight 386.5 kg (852.0 pounds)
Weight incl. oil, gas, etc 403.2 kg (889.0 pounds)
Seat height 693 mm (27.3 inches) If adjustable, lowest setting.
Overall length 2504 mm (98.6 inches)
Ground clearance 130 mm (5.1 inches)
Wheelbase 1613 mm (63.5 inches)
Fuel capacity 22.71 litres (6.00 US gallons)
Oil capacity 3.80 litres (4.02 US quarts)
Other specifications
Color options Vivid Black, Ember Red Sunglo/Merlot Sunglo, Big Blue Pearl/Vivid Black
Starter Electric

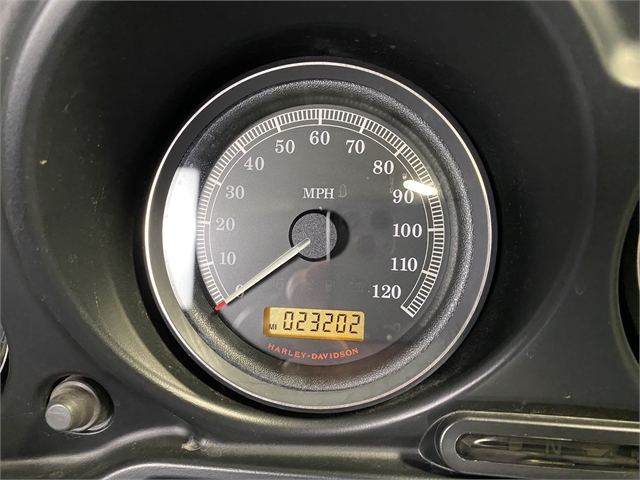

Instruments Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Electrical Sealed, maintenance-free battery, 12V, 28-amp/hour, 370 cca
Factory warranty 2 years, unlimited mileage.
Comments 3 wheels. Lever actuated dual parking brake. Electric reverse actuated by handlebar mounted hand controls.
  • Status:
    Pre-Owned
  • Vehicle:
    2012 Harley-Davidson Trike Tri Glide Ultra Classic
  • VIN:
    1HD1MAM10CB856536
  • Model Number:
    FLHTCUTG
  • Mileage:
    23,202 miles
  • Color:
    BLACK W/ PINSTRIPE
  • Stock Number:
    56536TW
  • Title:
    Clear
  • Location:
    Worth Harley-Davidson
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Harman/Kardon
  • Number Of Discs:
    1
  • Number Of Speakers:
    4

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Dual Hydraulic Disc

ENGINE

  • Bore (in):
    3.88
  • Bore (mm):
    98.55
  • CAN Liters Per Kilometer (Combined):
    6.2
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.6
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1687.9
  • Displacement (ci):
    103
  • Engine Brand Name:
    Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.25
  • Torque (Ft Lbs):
    100
  • Torque (Nm):
    135.6
  • Torque RPM:
    3250
  • US Miles Per Gallon (Combined):
    38
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Body Material:
    Fiberglass
  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Floor Board Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Hand Guards:
    Yes
  • Side Cover:
    Yes

GLASS

  • Folding:
    Yes
  • Height:
    High
  • Tinted:
    Yes
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Backrest Location:
    Passenger
  • Backrest Type:
    Fixed
  • Lumbar Adjustment:
    Yes
  • Number Of Seats:
    2
  • Seat Height (in):
    27.1
  • Seat Height (mm):
    688.3
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Bag Liner Material:
    Vinyl
  • Rear Rack Storage Material:
    Metal
  • Rear Rack Storage Trim:
    Plain

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Independent
  • Steering Damper:
    Yes

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    524.8
  • Dry Weight (lbs):
    1157
  • Engine Displacement to Weight (cc):
    1.42
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    4.7
  • Ground Clearance (mm):
    119.4
  • Length (ft):
    8.82
  • Length (ft/ft):
    8
  • Length (ft/in):
    9.8
  • Length (in):
    105.8
  • Length (mm):
    2687.3
  • Payload Capacity (kgs):
    36.3
  • Payload Capacity (lbs):
    80
  • Storage Capacity (cuft):
    6.7
  • Wet Weight (kg):
    540.2
  • Wet Weight (lbs):
    1191
  • Wheelbase (in):
    66.7
  • Wheelbase (mm):
    1694.2
  • Width (in):
    43.9
  • Width (mm):
    1115.1

TRANSMISSION

  • Gear Ratio (1):
    10.537
  • Gear Ratio (2):
    7.303
  • Gear Ratio (3):
    5.425
  • Gear Ratio (4):
    4.393
  • Gear Ratio (5):
    3.742
  • Gear Ratio (6):
    3.157
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Reverse:
    Yes
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® MT90B16 72H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    72H
  • Front Wheel Diameter:
    16
  • Rear Tire (Full Spec):
    Dunlop® 205/65 R15
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Width:
    205
  • Rear Wheel Diameter:
    15
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
