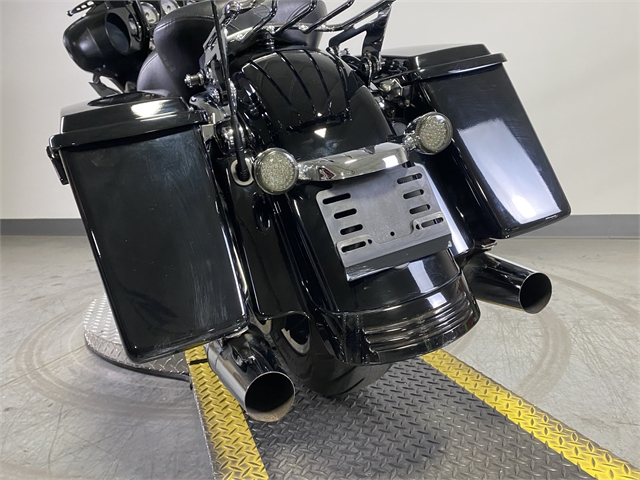

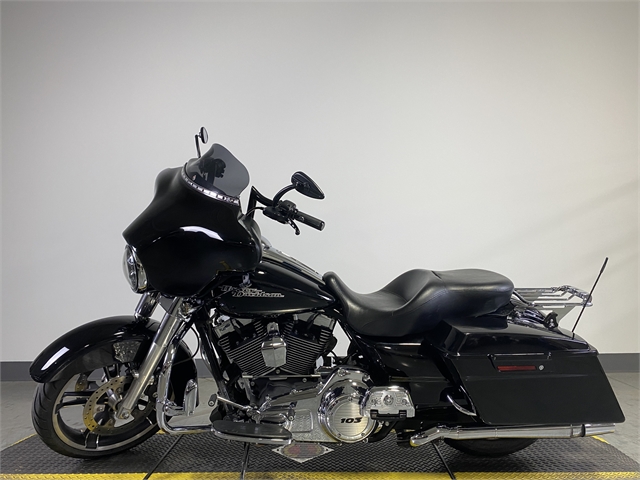

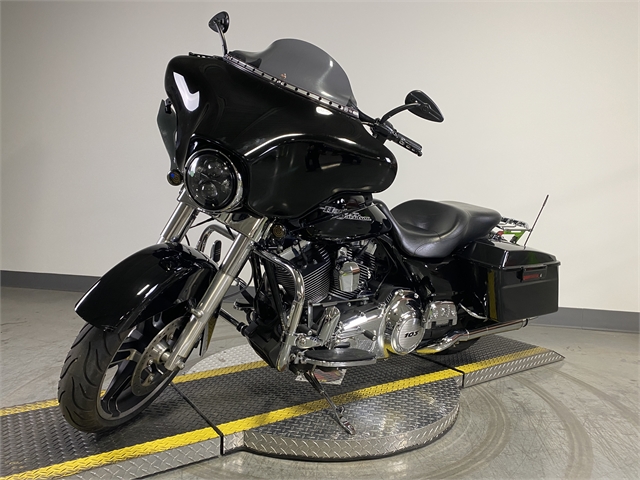

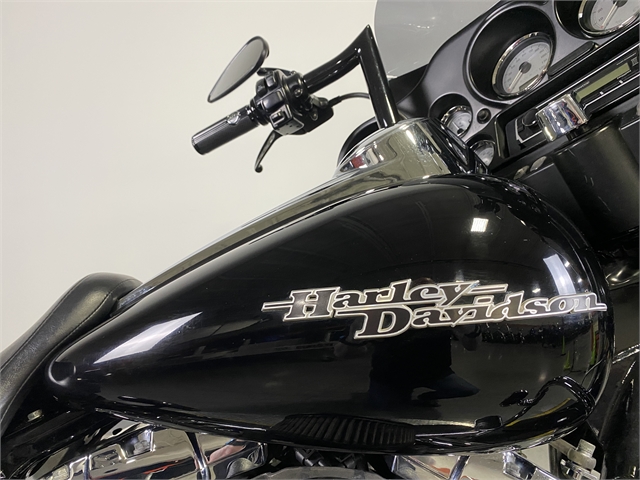

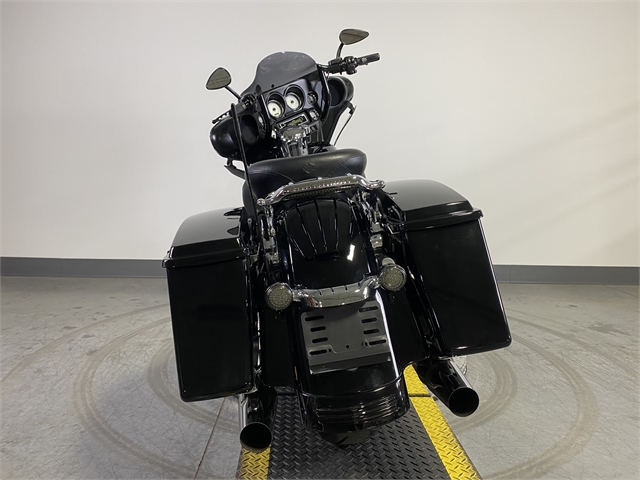

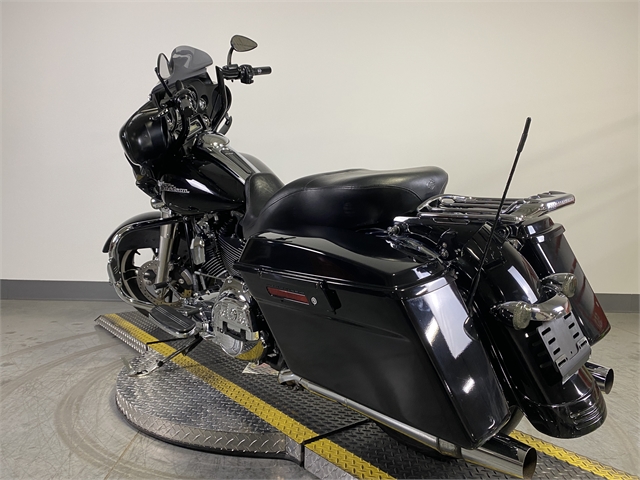

2012 Harley-Davidson Street Glide

Stock #74198TW
Your Price: $13,981

315 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2012 Harley-Davidson Street Glide . You can reach me at or by phone at .
Description
Designed by Chief Styling Officer Willie G. Davidson, the nimble, fork-mounted Bat-Wing fairing first appeared on the touring scene back in 1969. And it continues to evolve and symbolize the essence of Grand American Touring motorcycles more than forty years later. A lower profile, smoked windscreen with a unique contour adds to the distinctive look of the Street Glide® model.



General information
Model Harley-Davidson FLHX Street Glide
Year 2012
Category Touring
Engine and transmission
Displacement 1688.0 ccm (103.00 cubic inches)
Engine type V2, four-stroke

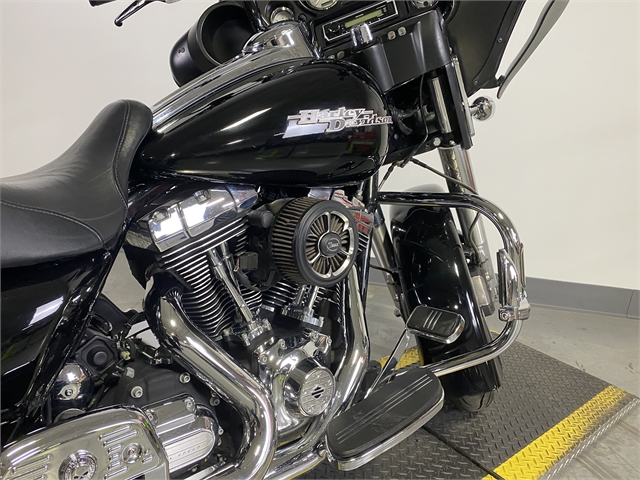

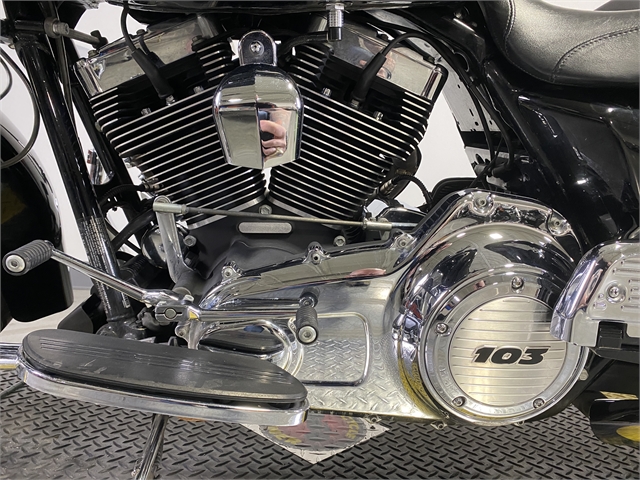

Engine details Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Torque 135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM
Compression 9.6:1
Bore x stroke 98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves per cylinder 2
Fuel system Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control Double Overhead Cams/Twin Cam (DOHC)
Lubrication system Pressurized, dry-sump with oil cooler
Cooling system Air
Gearbox 6-speed
Transmission type Belt   (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Fuel consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system Chrome, 2-1-2 dual exhaust with tapered mufflers
Chassis, suspension, brakes and wheels
Frame type Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake (fork angle) 26.0°
Trail 170 mm (6.7 inches)
Front suspension 41.3 mm telescopic, triple circuit damping
Front wheel travel 117 mm (4.6 inches)
Rear suspension Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm.
Rear wheel travel 51 mm (2.0 inches)
Front tire 130/70-BW18
Rear tire 180/65-BW16
Front brakes Double disc. 4-piston calipers. Optional ABS.
Diameter 300 mm (11.8 inches)
Rear brakes Single disc. 4-piston caliper. Optional ABS.
Diameter 300 mm (11.8 inches)
Wheels Black, Slotted 5-Spoke Cast Aluminum
Seat Sculpted seat for added comfort and easier straddling
Physical measures and capacities
Dry weight 356.1 kg (785.0 pounds)
Weight incl. oil, gas, etc 372.9 kg (822.0 pounds)
Seat height 663 mm (26.1 inches) If adjustable, lowest setting.
Overall length 2413 mm (95.0 inches)
Ground clearance 119 mm (4.7 inches)
Wheelbase 1613 mm (63.5 inches)
Fuel capacity 22.71 litres (6.00 US gallons)
Oil capacity 3.80 litres (4.02 US quarts)
Other specifications
Color options Vivid Black, Big Blue Pearl, Ember Red Sunglo, Black Denim, Tequila Sunrise/H-D Orange
Starter Electric

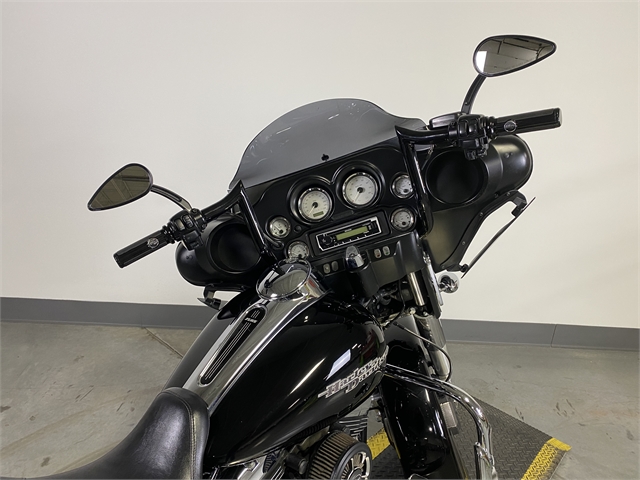

Instruments Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Electrical Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca
Factory warranty 24 months, unlimited mileage.
Comments Sidecar option. Injection-molded hard saddlebags with colormatched latches; 26 cu. ft. volume.
  • Status:
    Pre-Owned
  • Vehicle:
    2012 Harley-Davidson Street Glide
  • VIN:
    1HD1KBM10CB674198
  • Model Number:
    FLHX
  • Mileage:
    52,996 miles
  • Color:
    Black
  • Stock Number:
    74198TW
  • Title:
    Clear
  • Location:
    Worth Harley-Davidson
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Harman/Kardon
  • Number Of Discs:
    1
  • Number Of Speakers:
    2

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Diameter (in):
    11.5
  • Front Brake Diameter (mm):
    292.1
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    11.5
  • Rear Brake Diameter (mm):
    292.1
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3.88
  • Bore (mm):
    98.6
  • CAN Liters Per Kilometer (Combined):
    5.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.6
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1687.9
  • Displacement (ci):
    103
  • Engine Brand Name:
    Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.3
  • Torque (Ft Lbs):
    100
  • Torque (Nm):
    135.6
  • Torque RPM:
    3250
  • US Miles Per Gallon (Combined):
    42
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Height:
    Low
  • Tinted:
    Yes
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    26.1
  • Seat Height (mm):
    662.9
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    356.1
  • Dry Weight (lbs):
    785
  • Engine Displacement to Weight (cc):
    2.02
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    4.7
  • Ground Clearance (mm):
    119.4
  • Length (ft):
    7.92
  • Length (ft/ft):
    7
  • Length (ft/in):
    11
  • Length (in):
    95
  • Length (mm):
    2413
  • Wet Weight (kg):
    372.9
  • Wet Weight (lbs):
    822
  • Wheelbase (in):
    63.5
  • Wheelbase (mm):
    1612.9

TRANSMISSION

  • Gear Ratio (1):
    9.59
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.94
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.41
  • Gear Ratio (6):
    2.88
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® 130/70 R18 63H
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    63H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    18
  • Rear Tire (Full Spec):
    Dunlop® 180/65 R16 81H
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Speed Rating:
    81H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
