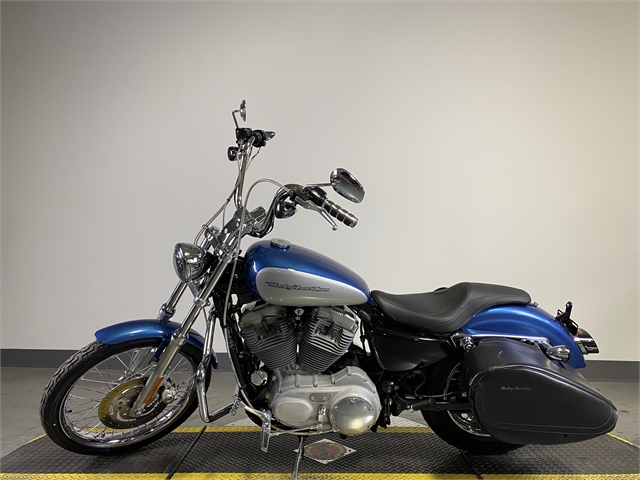

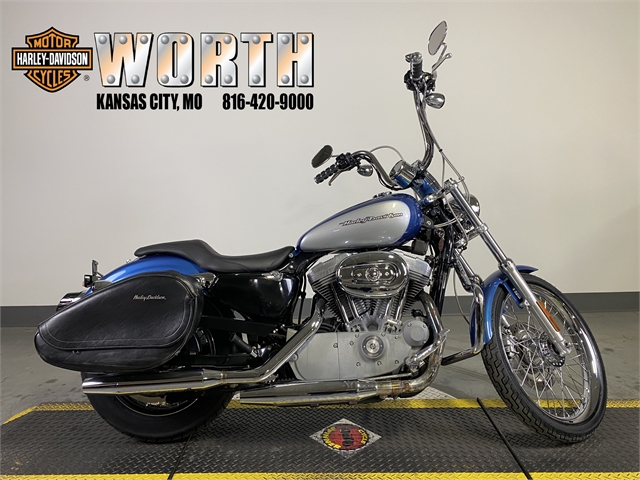

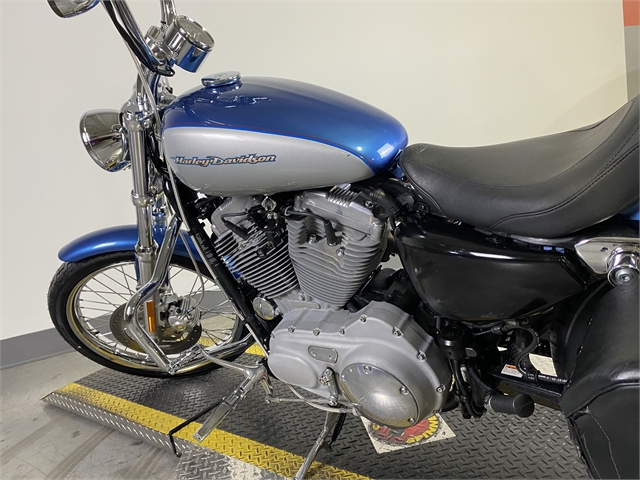

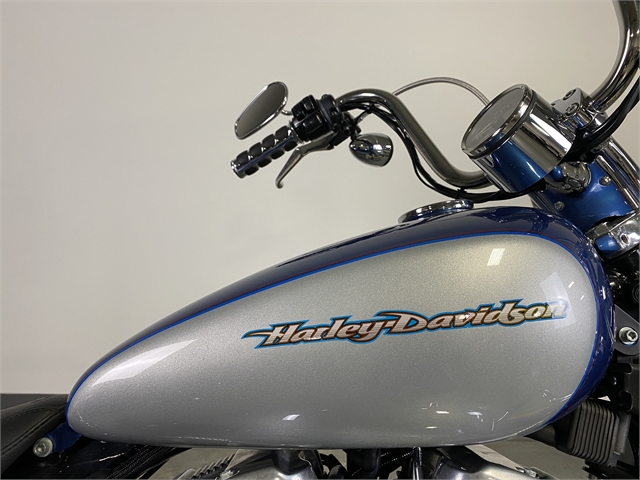

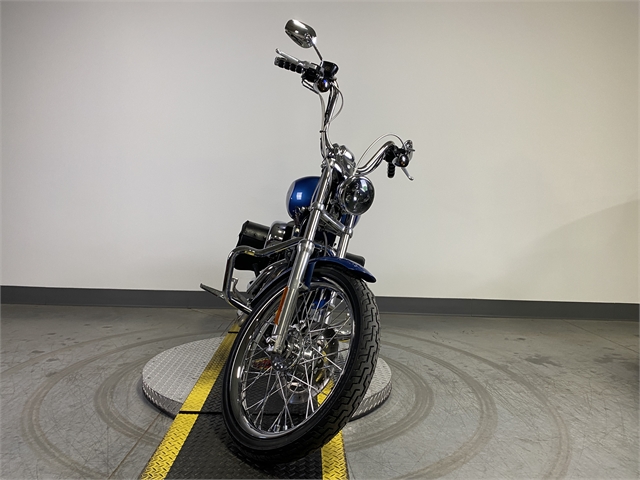

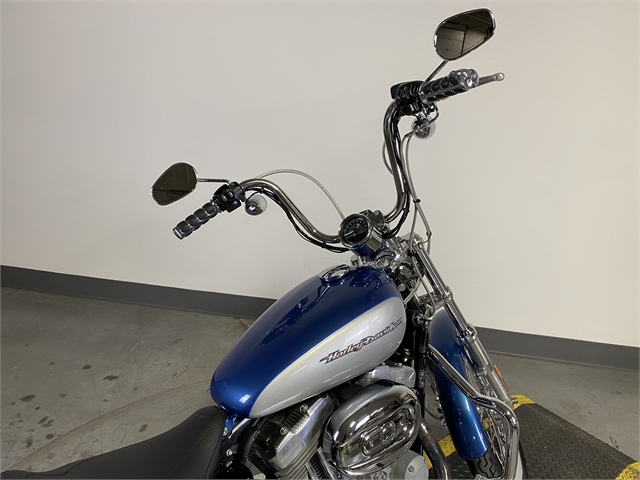

2005 Harley-Davidson Sportster 883 Custom

Stock #22531TW
Your Price: $5,981

206 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2005 Harley-Davidson Sportster 883 Custom . You can reach me at or by phone at .
Description
General information
Model Harley-Davidson XL 883 C Sportster Custom
Year 2005
Category Custom / cruiser
Engine and transmission
Displacement 883.0 ccm (53.88 cubic inches)
Engine type V2, four-stroke
Torque 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4200 RPM
Compression 9.0:1
Bore x stroke 76.2 x 96.8 mm (3.0 x 3.8 inches)
Valves per cylinder 2
Fuel system Carburettor
Cooling system Air
Gearbox 5-speed
Transmission type Belt   (final drive)
Clutch Multi-plate clutch with diaphragm spring in oil bath.
Exhaust system Staggered shorty duals
Chassis, suspension, brakes and wheels
Rake (fork angle) 30.1°
Front tire MH90-21
Rear tire 150/80-16
Front brakes Single disc
Diameter 292 mm (11.5 inches)
Rear brakes Single disc
Diameter 292 mm (11.5 inches)
Physical measures and capacities
Dry weight 255.0 kg (562.2 pounds)
Seat height 673 mm (26.5 inches) If adjustable, lowest setting.
Overall length 2275 mm (89.6 inches)
Ground clearance 112 mm (4.4 inches)
Wheelbase 1520 mm (59.8 inches)
Fuel capacity 17.40 litres (4.60 US gallons)
Other specifications
Color options Vivid black, brilliant silver pearl, sierra red pearl, black cherry pearl, glacier white pearl, rich sunglo blue, yellow pearl, two-tone rich sunglo blue and chopper blue pearl, two-tone chopper blue pearl and brilliant silver pearl, two-tone sierra red p
  • Status:
    Pre-Owned
  • Vehicle:
    2005 Harley-Davidson Sportster 883 Custom
  • VIN:
    1HD4CJM185K422531
  • Model Number:
    XL883C
  • Mileage:
    27,551 miles
  • Color:
    BLUE/SILVER W/PINSTRIPE
  • Stock Number:
    22531TW
  • Title:
    Clear
  • Location:
    Worth Harley-Davidson
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    11.5
  • Front Brake Diameter (mm):
    292.1
  • Front Brake Type:
    Disc
  • Rear Brake Diameter (in):
    11.5
  • Rear Brake Diameter (mm):
    292.1
  • Rear Brake Type:
    Disc

ENGINE

  • Bore (in):
    3
  • Bore (mm):
    76.2
  • CAN Liters Per Kilometer (City):
    4.9
  • CAN Liters Per Kilometer (Hwy):
    4.1
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    40
  • Carburetor:
    Yes
  • Compression Ratio:
    8.9
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    883.3
  • Displacement (ci):
    53.9
  • Engine Brand Name:
    Evolution®
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Starter:
    Electric
  • Stroke (in):
    3.81
  • Stroke (mm):
    96.8
  • Torque (Ft Lbs):
    51
  • Torque (Nm):
    69.1
  • Torque RPM:
    4300
  • US Miles Per Gallon (City):
    48
  • US Miles Per Gallon (Hwy):
    57
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Foot Peg Location:
    Driver and Passenger
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    26.5
  • Seat Height (mm):
    673.1
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    253.1
  • Dry Weight (lbs):
    558
  • Engine Displacement to Weight (cc):
    1.58
  • Fuel Capacity (gal):
    4.5
  • Fuel Capacity (l):
    17
  • Ground Clearance (in):
    4.4
  • Ground Clearance (mm):
    111.8
  • Length (ft):
    7.52
  • Length (ft/ft):
    7
  • Length (ft/in):
    6.3
  • Length (in):
    90.3
  • Length (mm):
    2293.6
  • Wheelbase (in):
    60.4
  • Wheelbase (mm):
    1534.2

TRANSMISSION

  • Gear Ratio (1):
    10.94
  • Gear Ratio (2):
    7.52
  • Gear Ratio (3):
    5.83
  • Gear Ratio (4):
    4.81
  • Gear Ratio (5):
    4.07
  • Number Of Speeds:
    5
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop MH90-21 54H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    54H
  • Front Wheel Diameter:
    21
  • Rear Tire (Full Spec):
    Dunlop 150/80 R16 71H
  • Rear Tire Aspect Ratio:
    80
  • Rear Tire Speed Rating:
    71H
  • Rear Tire Width:
    150
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
