General information |
Model |

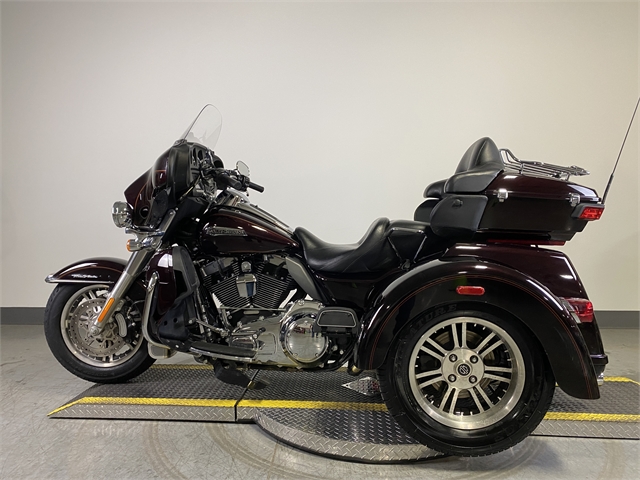

Harley-Davidson Tri Glide Ultra |
Year |
2014 |
Category |
Touring |
Engine and transmission |
Displacement |
1688.0 ccm (103.00 cubic inches) |
Engine type |
V2, four-stroke |
Engine details |
Air-cooled, Twin Cam 103™ |
Torque |
135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
Compression |
9.6:1 |
Bore x stroke |
98.4 x 111.3 mm (3.9 x 4.4 inches) |
Fuel system |
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
Cooling system |
Air |
Gearbox |
6-speed |
Transmission type |
Belt (final drive) |
Clutch |
Multi-plate with diaphragm spring in oil bath |
Driveline |
Chain, 34/46 ratio primary drive |
Fuel consumption |
6.19 litres/100 km (16.2 km/l or 38.00 mpg) |
Greenhouse gases |
143.6 CO2 g/km. (CO2 - Carbon dioxide emission) |

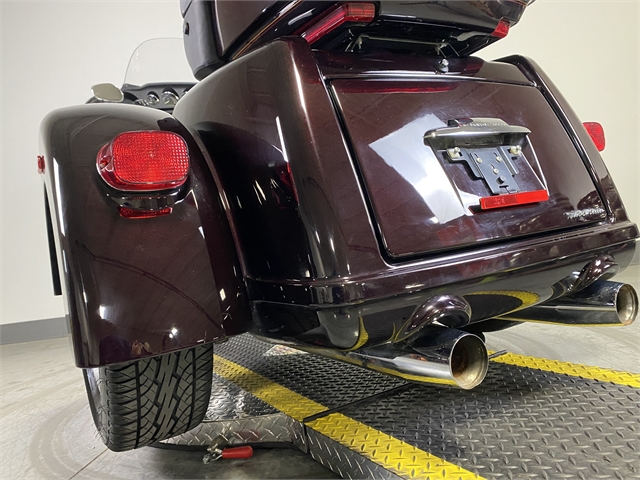

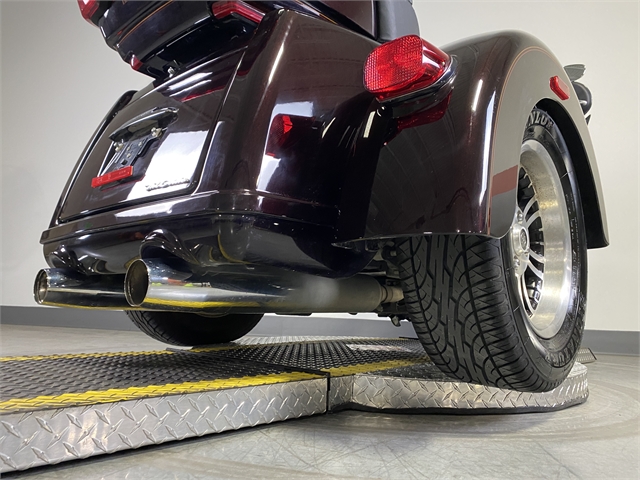

Exhaust system |
Chrome, 2-1-2 dual exhaust with tapered mufflers |
Chassis, suspension, brakes and wheels |
Rake (fork angle) |
26.0° |
Trail |
100 mm (3.9 inches) |

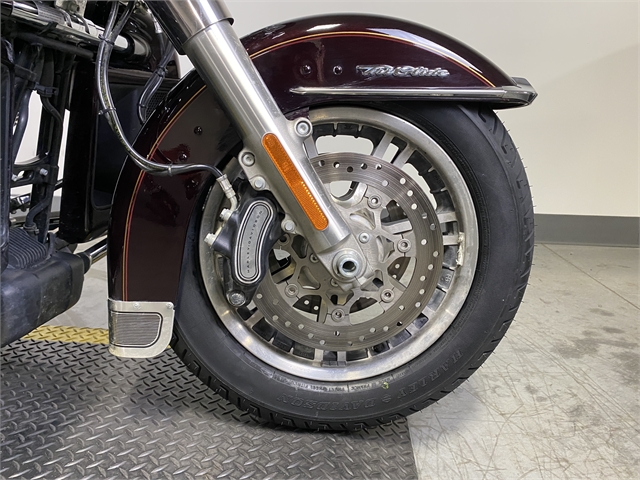

Front tire |
130/60-21 |
Rear tire |
205/65-15 |
Front brakes |
Single disc |
Rear brakes |
Single disc |
Wheels |
Black, 7-spoke Cast Aluminum. Two rear wheels. |
Physical measures and capacities |
Dry weight |
535.2 kg (1,180.0 pounds) |
Weight incl. oil, gas, etc |
567.0 kg (1,250.0 pounds) |
Seat height |
688 mm (27.1 inches) If adjustable, lowest setting. |
Overall length |
2687 mm (105.8 inches) |
Ground clearance |
119 mm (4.7 inches) |
Wheelbase |
1692 mm (66.6 inches) |
Fuel capacity |
22.71 litres (6.00 US gallons) |
Oil capacity |
3.80 litres (4.02 US quarts) |
Other specifications |
Color options |
Sand Pearl/Canyon Brown, Mysterious Red Sunglo/Blackened Cayenne Sunglo, Big Blue Pearl/Vivid Black, Blackened Cayenne Sunglo, Vivid Black |
Starter |
Electric |

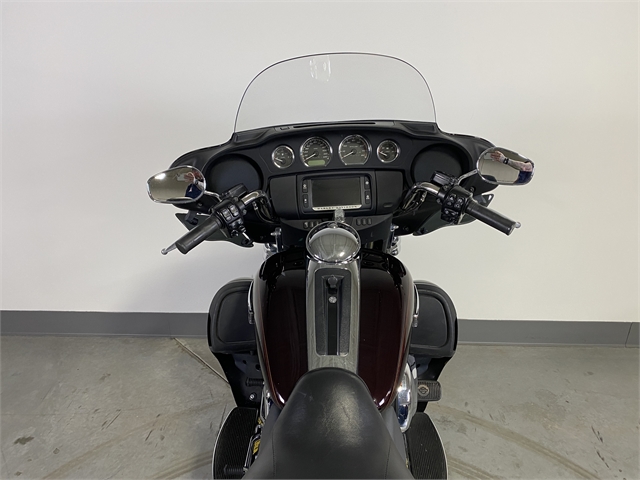

Instruments |
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
Light |
High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled |
Carrying capacity |
Trunk and top box |
Comments |
Trike. Windshield. |
