General information |
Model |

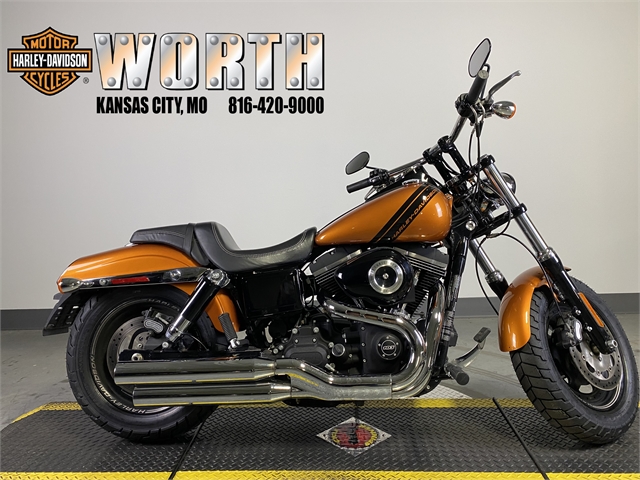

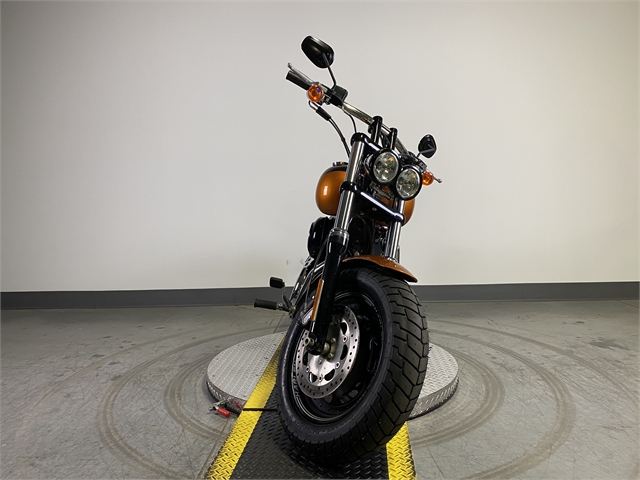

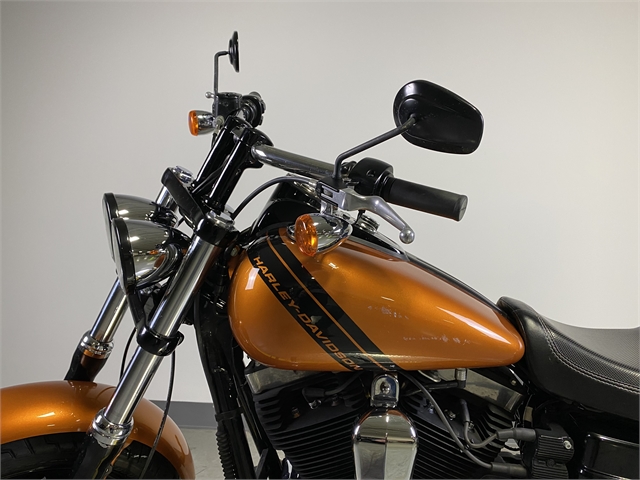

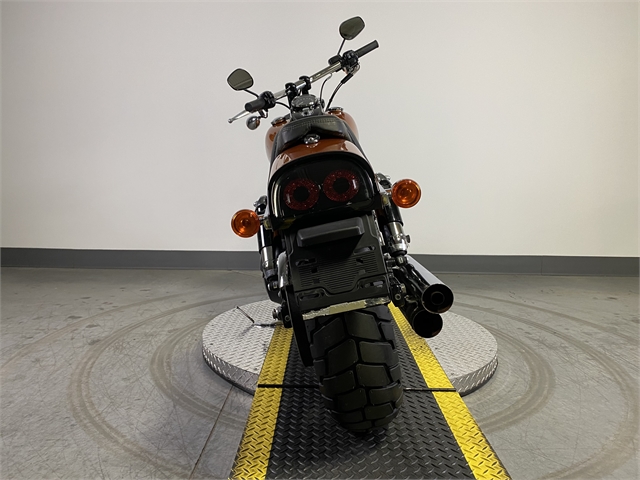

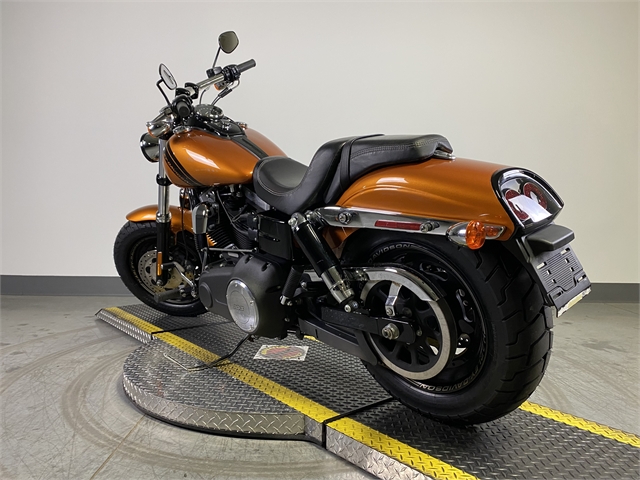

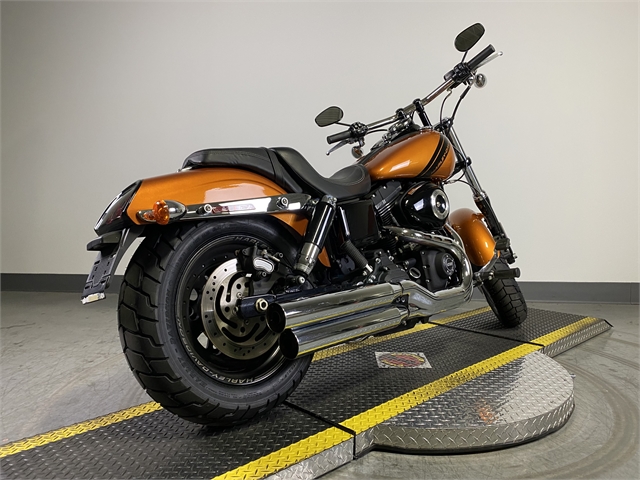

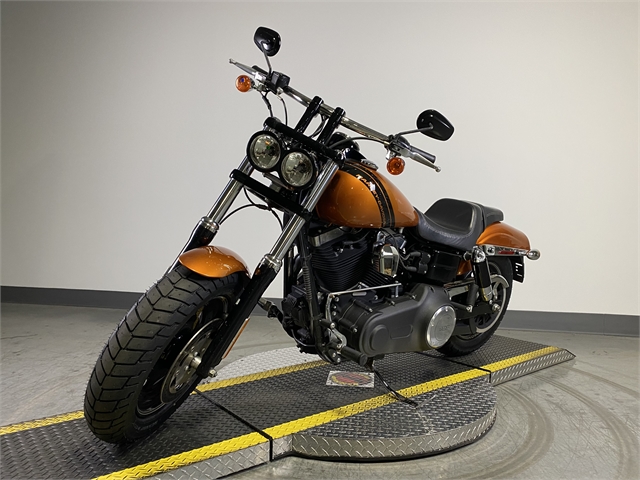

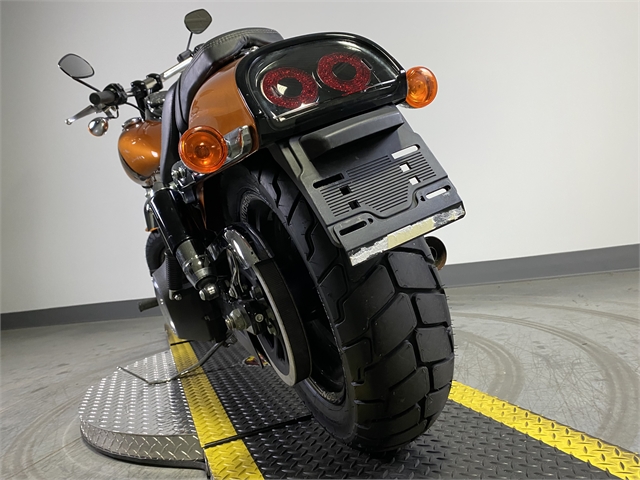

Harley-Davidson Dyna Fat Bob |
Year |
2014 |
Category |
Custom / cruiser |
Engine and transmission |
Displacement |
1688.0 ccm (103.00 cubic inches) |

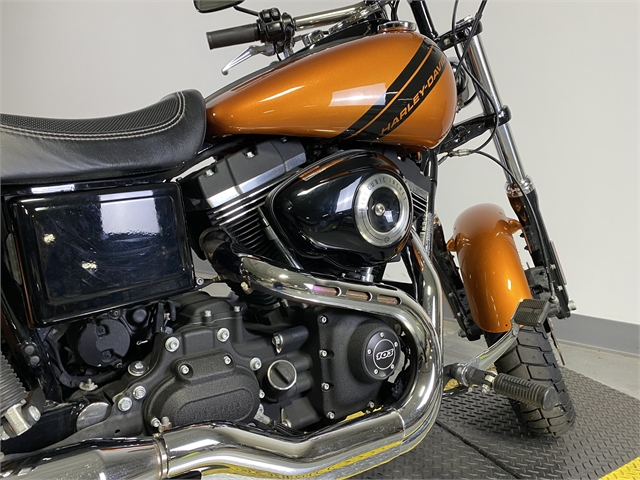

Engine type |
V2, four-stroke |

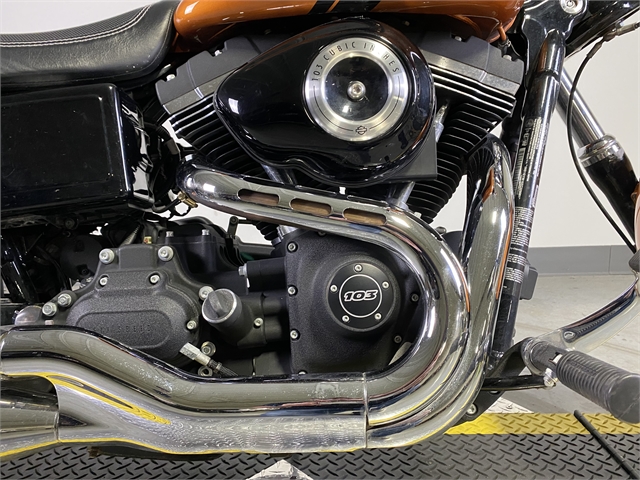

Engine details |

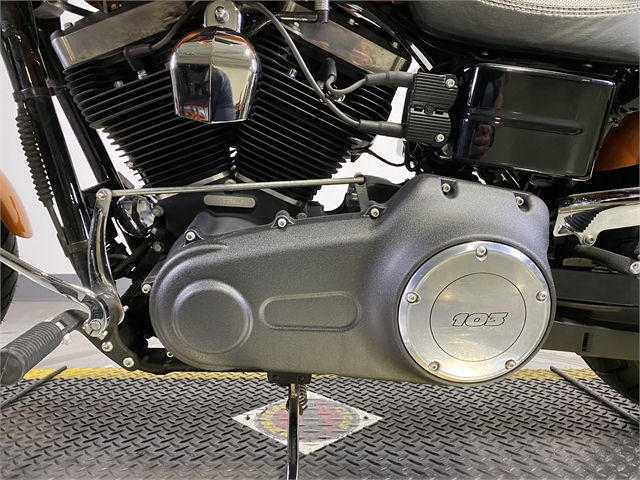

Air-cooled, Twin Cam 103™ |
Torque |
135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3500 RPM |
Compression |
9.6:1 |
Bore x stroke |
98.4 x 111.3 mm (3.9 x 4.4 inches) |
Fuel system |
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
Cooling system |
Air |
Gearbox |
6-speed |
Transmission type |
Belt (final drive) |
Clutch |
Multi-plate with diaphragm spring in oil bath |
Driveline |
Primary chain, 34/46 ratio |
Fuel consumption |
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
Greenhouse gases |
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system |
Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers |
Chassis, suspension, brakes and wheels |
Rake (fork angle) |
29.0° |
Trail |
124 mm (4.9 inches) |
Front tire |
130/90-B16 |

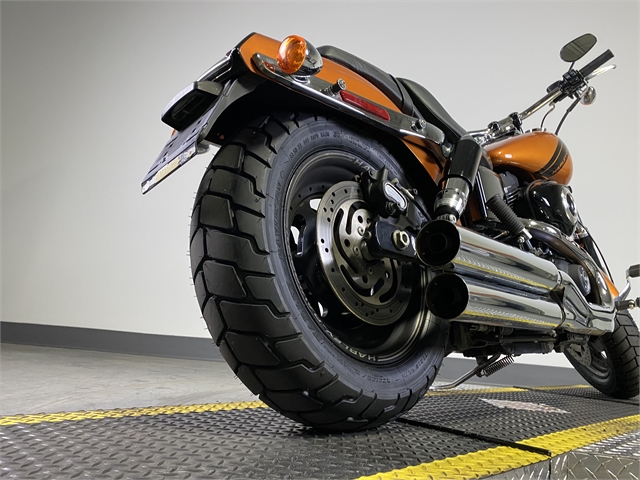

Rear tire |
180/70-B16 |
Front brakes |
Double disc. 4-piston fixed |
Rear brakes |
Single disc. 2-piston torque-free floating |
Wheels |
Machined, Aluminum Slotted Disc |
Physical measures and capacities |
Dry weight |
305.3 kg (673.0 pounds) |
Weight incl. oil, gas, etc |
320.2 kg (706.0 pounds) |
Seat height |
663 mm (26.1 inches) If adjustable, lowest setting. |
Overall length |
2329 mm (91.7 inches) |
Ground clearance |
124 mm (4.9 inches) |
Wheelbase |
1621 mm (63.8 inches) |

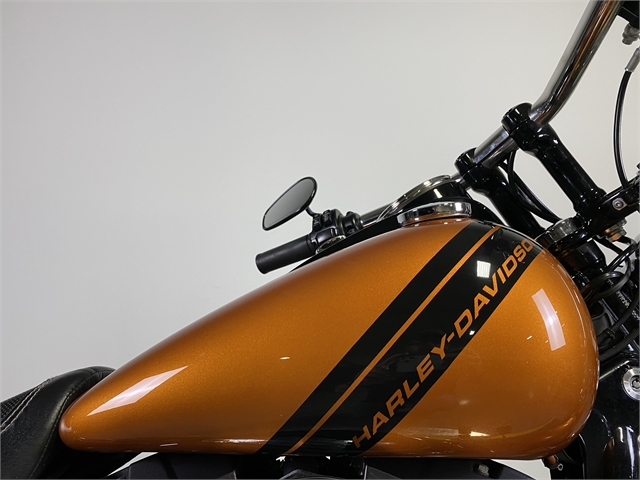

Fuel capacity |
18.93 litres (5.00 US gallons) |
Oil capacity |
2.80 litres (2.96 US quarts) |
Other specifications |
Color options |
Sand Cammo Denim, Black Denim,Amber Whiskey, Vivid Black |
Starter |
Electric |

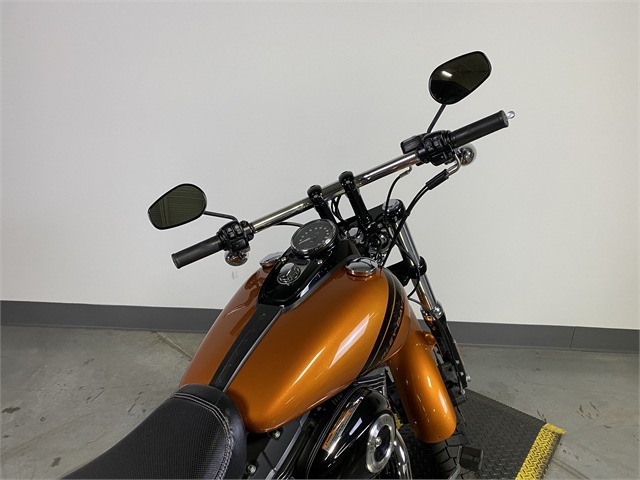

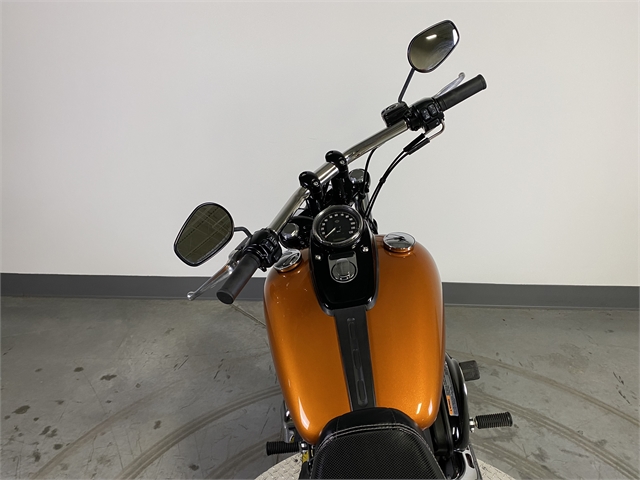

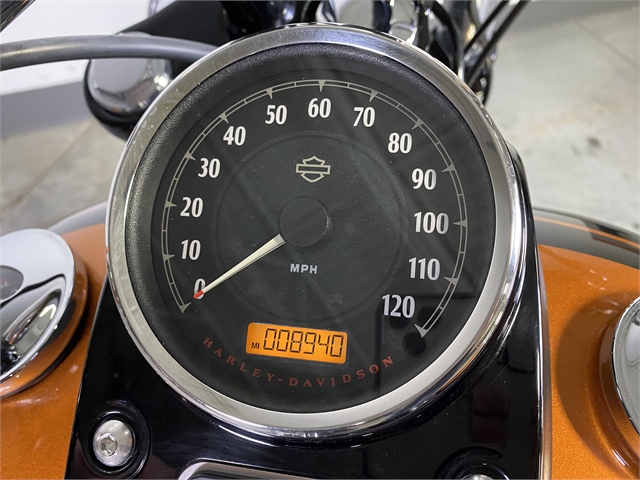

Instruments |
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
Light |
High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings |
Comments |
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren. |
